2 Kutup B+C+D Sınıfı Parafudr 100kA
Two-pole, B+C+D full protection class 100kA surge arrester — comprehensive protection from a single point.
Product detail — 2 Kutup B+C+D Sınıfı Parafudr 100kATrimbox · AC-DC surge arrester
AC-DC Parafudr
Combined surge arrester protecting both AC and DC lines — for solar (PV) and telecom mixed systems.

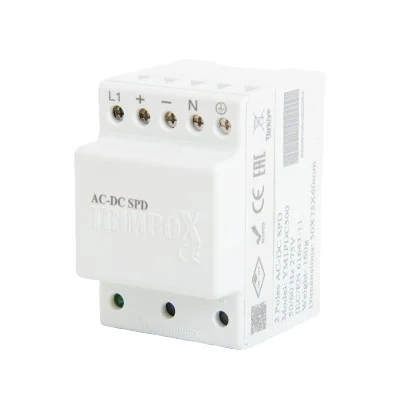

Manufacturer product images · for reference
Technical specifications
| Brand | Trimbox |
|---|---|
| Category | AC-DC surge arrester |
| In | 20kA (8/20 µs) |
| Imax | 12,5kA (10/350 µs) |
| Itotal | 50kA (8/20µs) |
| Dimensions | 50 x 75 x 60mm |
| Screw thread | M5, torque: 4,5Nm |
| Activation | 275 V |
| Number of poles | 2 (line + neutral) |
| Ingress protection (IP) rating | IP20 |
| Nominal frequency Fn | 50 Hz – 60 Hz |
| Nominal voltage UN | 230 V AC (230V AC – 275V AC) |
| Operating frequency | 50/60 Hz |
| Standards / regulations | EN 50539-11:2013+A, EN 50539-11:2013+A1:2014 |
| SPD fault indication | 1 LED |
| Stranded and solid conductor cross-section | 2,5 mm2, 4 mm2 |
| Standards for clearance and creepage distances | DIN VDE 0110-1 , IEC 60664-1 |
| Maximum required fuse for branch connection and Type K | 1000 A(gL/gG) |
Product information and images are compiled from the manufacturer's own publications; they do not depict a Sedan Mühendislik installation. Technical data is confirmed before ordering.

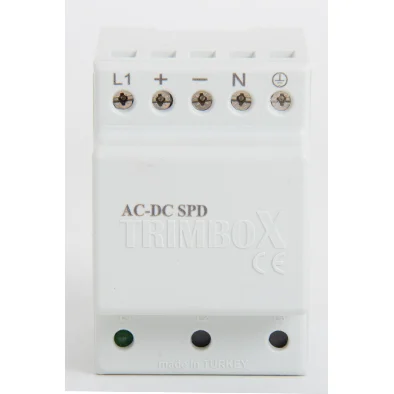

More images
