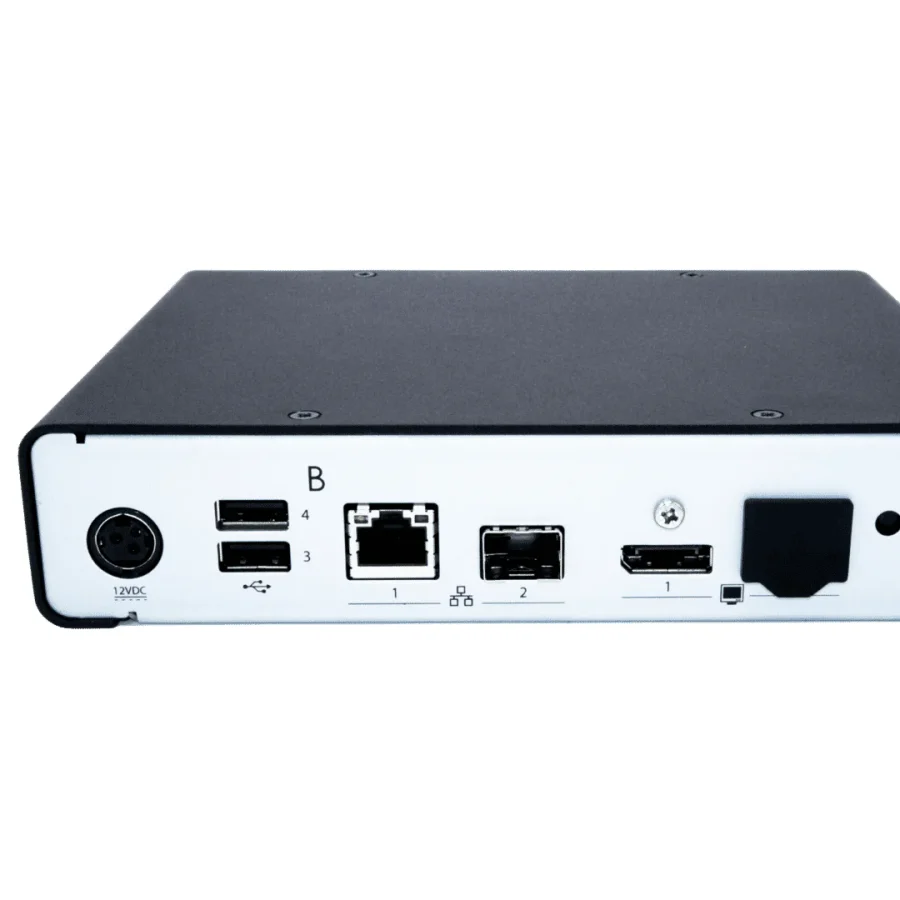

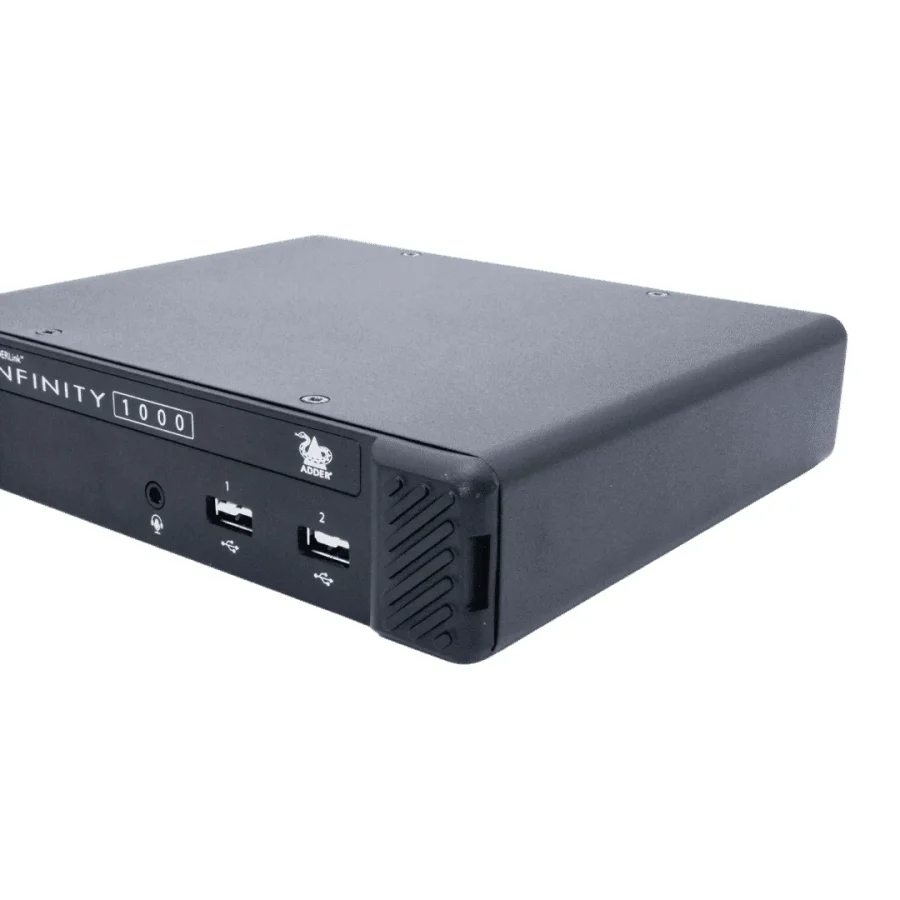

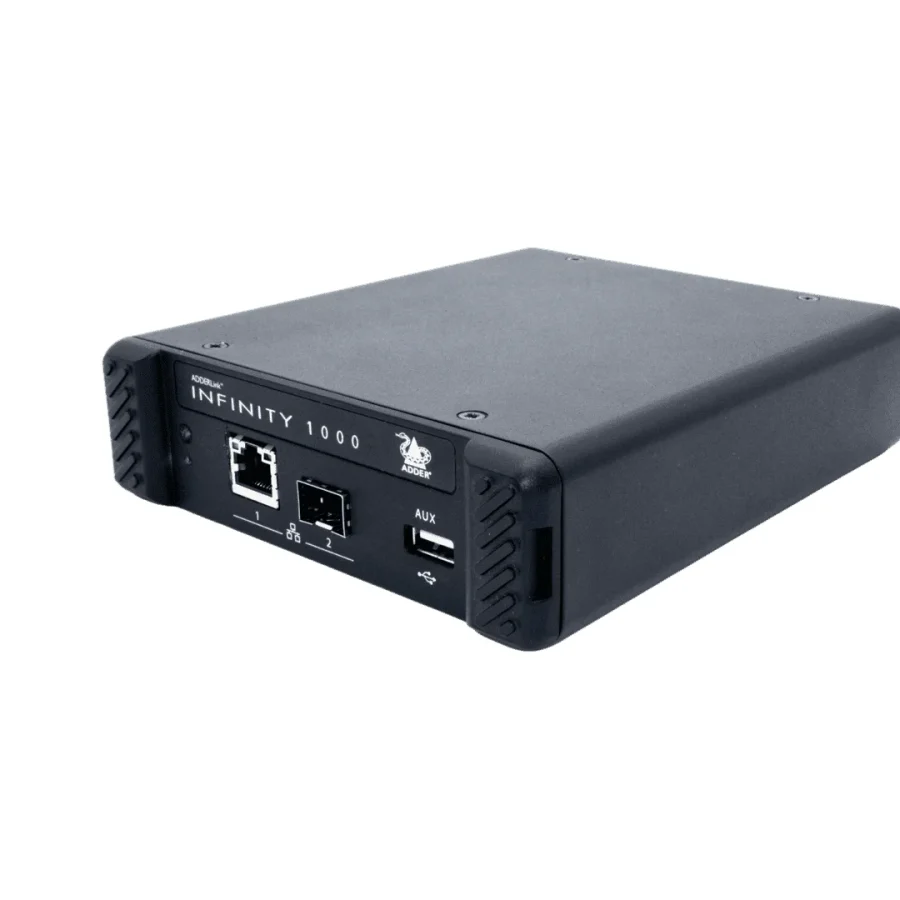

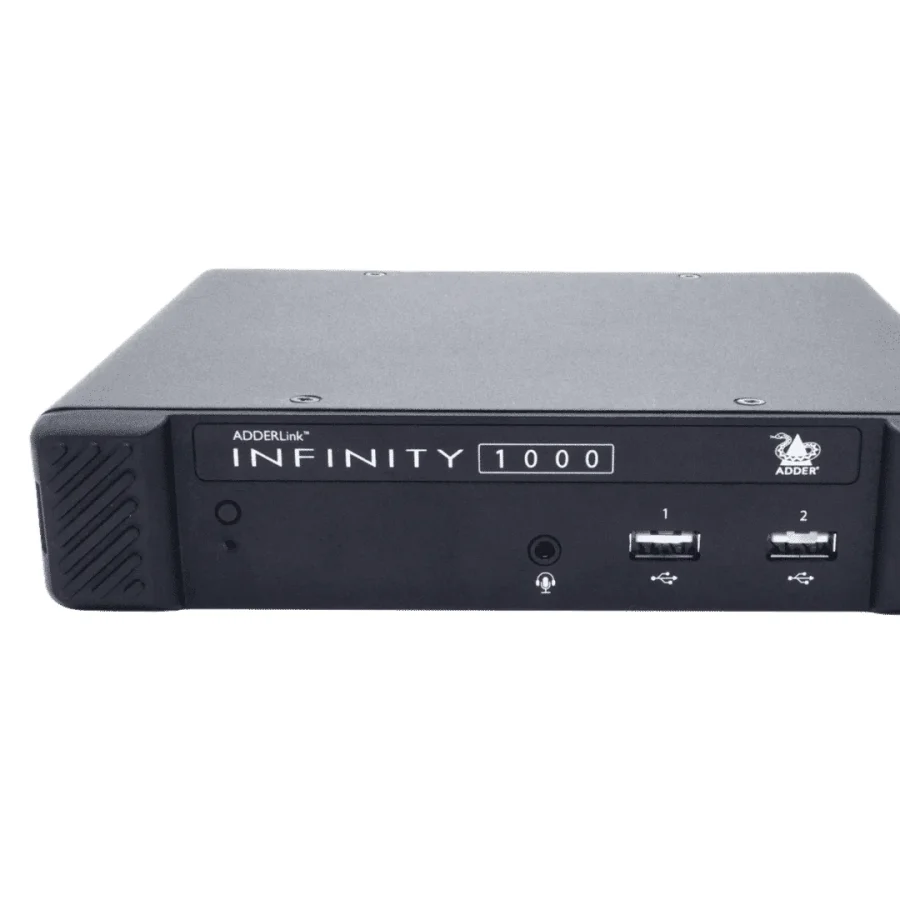

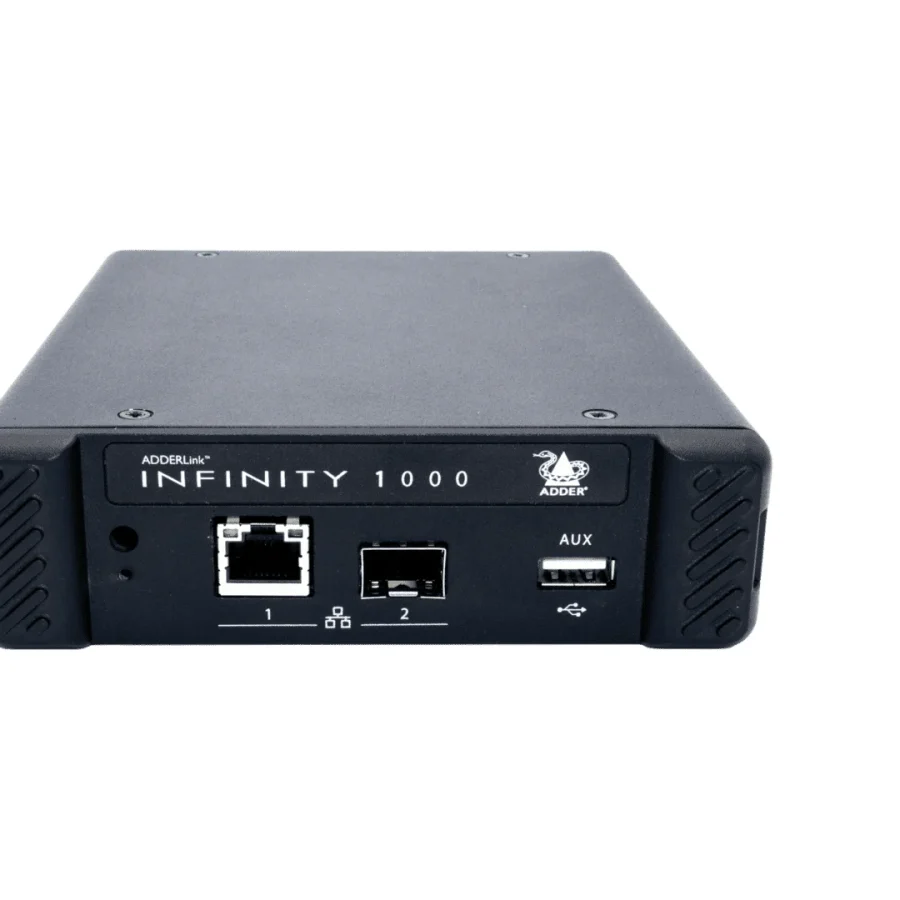

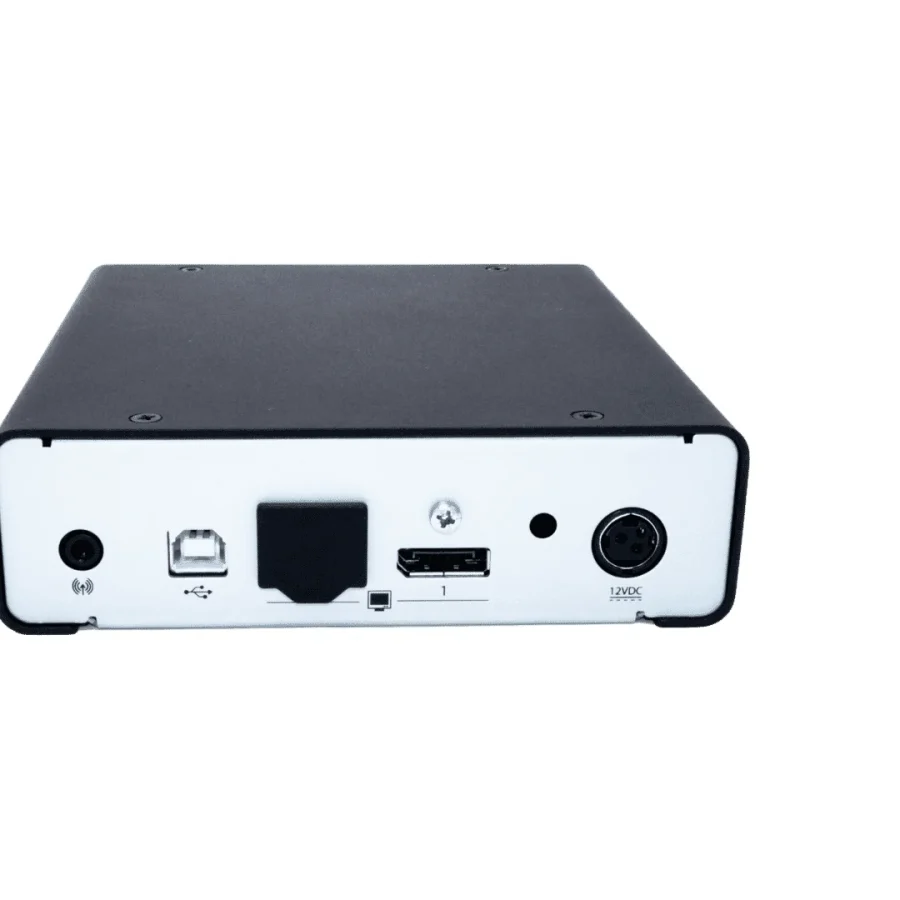

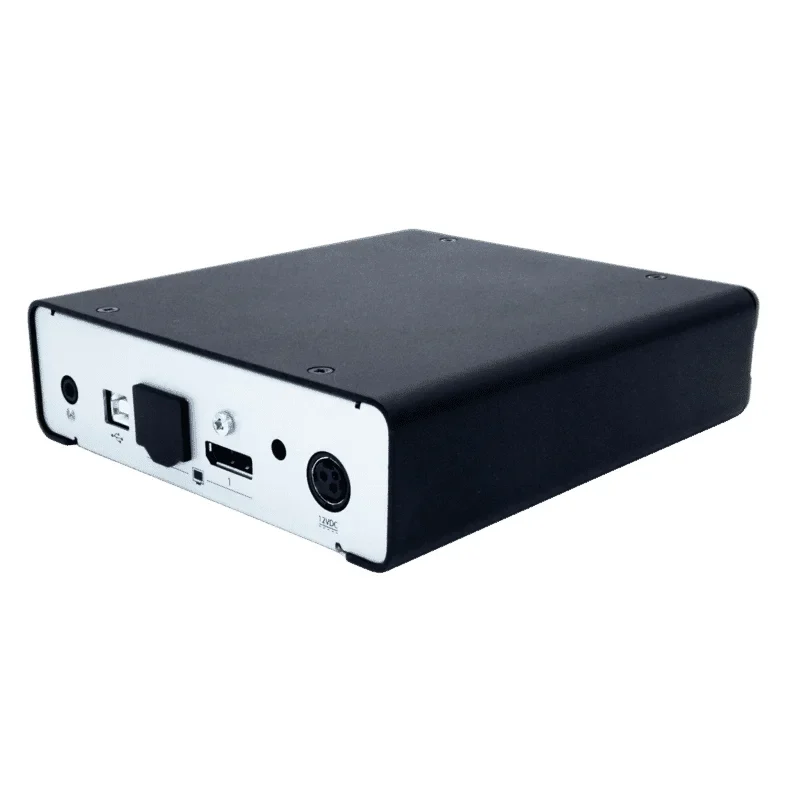

The ADDERLink INFINITY 1102 delivers single-head DisplayPort video, audio, and USB 2.0 over standard 1GbE IP networks. This fanless KVM extender supports DisplayPort 1.1 video up to 2560 x 1600 at 60 Hz while maintaining transparent USB 2.0 connectivity. The unit combines analog and digital audio support with RS232 serial pass-through for comprehensive remote access applications.
- Single DisplayPort 1.1 output up to 2560 x 1600 at 60 Hz
- Four USB 2.0 ports with true emulation and high-speed support
- 1GbE IP transport over standard managed switches
- Analog and digital audio with bi-directional USB audio support
- RS232 serial pass-through up to 115,200 baud
Telcordia SR332 Issue 4 March 2016 Calculated @ 55C
10/100 Support
No
Audio In Ports
1× 3.5mm jack
Audio Direction
Bi-directional
Audio Out Ports
1× 3.5mm jack
Serial Standard
RS232
OS Compatibility
All known operating systems
Maximum Baud Rate
115,200
Input Power Supply
External Power Supply Unit
Maximum Resolution
2560 x1600
Storage Temperature
0 to 40 °C / 32 to 104 °F
Storage Humidity (%)
10% - 90% (non-condensing)
Construction Material
Robust metal construction
Full Size DisplayPort
1× 1.1
Maximum Power (Watts)
18
Operating Temperature
0 to 40 °C / 32 to 104 °F
Typical Power (Watts)
7
Additional Information
Analog audio and audio via digital video connector is uni-directional. USB audio is bi-directional
Operating Humidity (%)
10% - 90% (non-condensing)
Temperature Regulation
Fanless
Serial Additional Information
RS232 or other serial standards can be passed between the units to a maximum baud rate of 115,200 by using serial to USB converters
Mean Time Between Failure (MTBF)
340,000 h
Product information and images are compiled from the manufacturer's own publications; they do not depict a Sedan Mühendislik installation. Technical data is confirmed before ordering.
More images
From the same category
KVM extenders

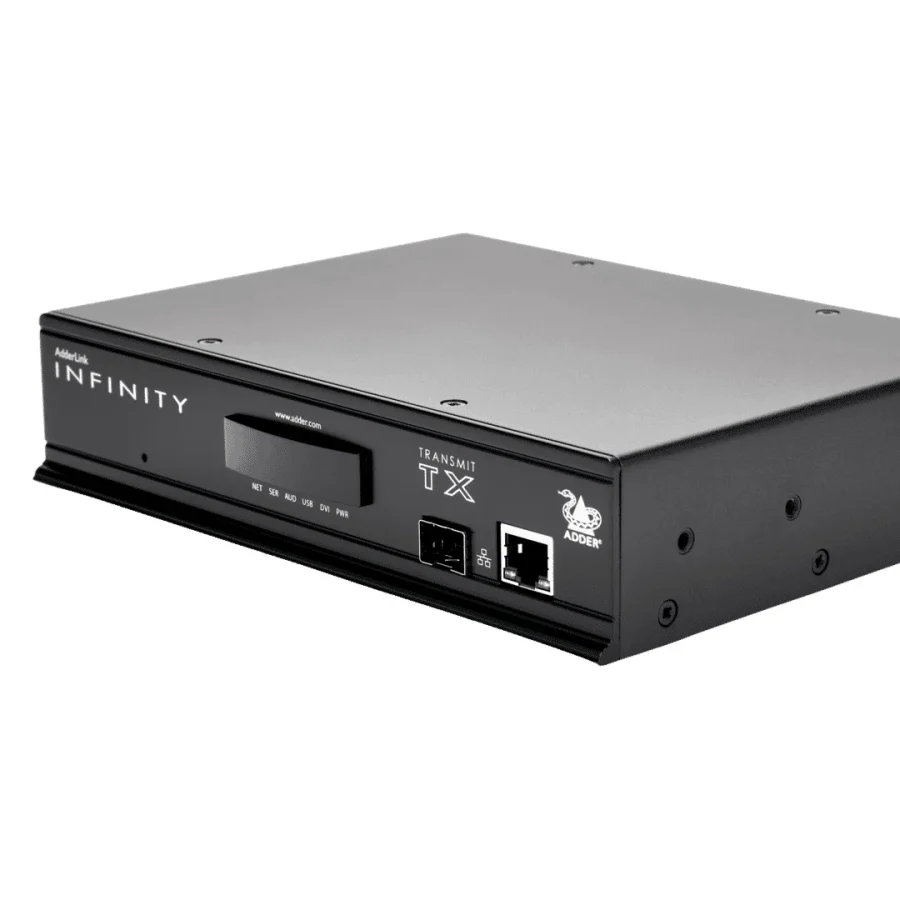

ADDERLink® INFINITY 1002
