ADDER Free-Flow
Mouse-driven automatic KVM switching software
Product detail — ADDER Free-FlowAdder · Software

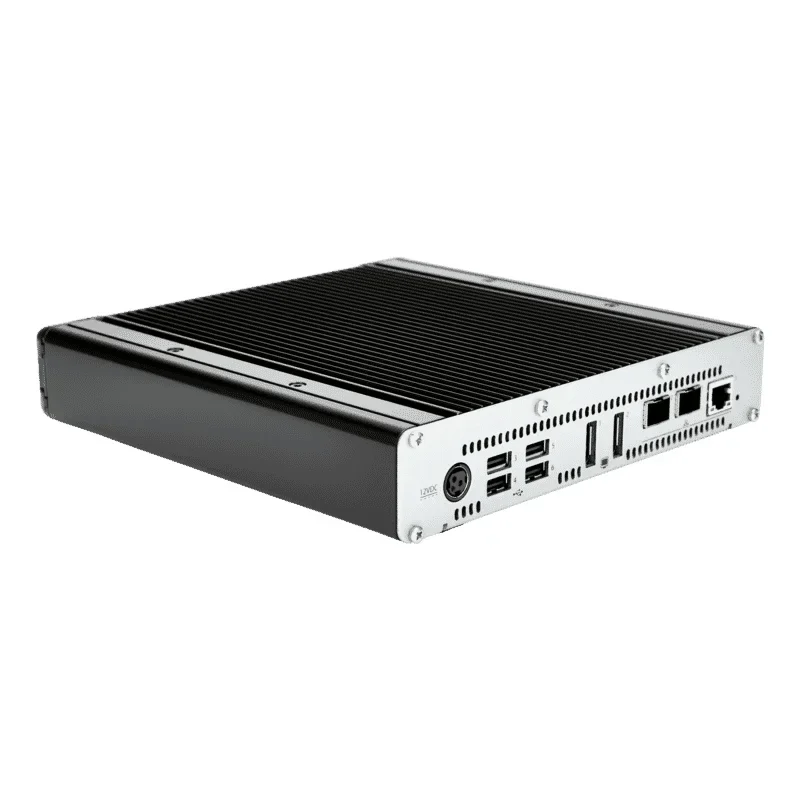

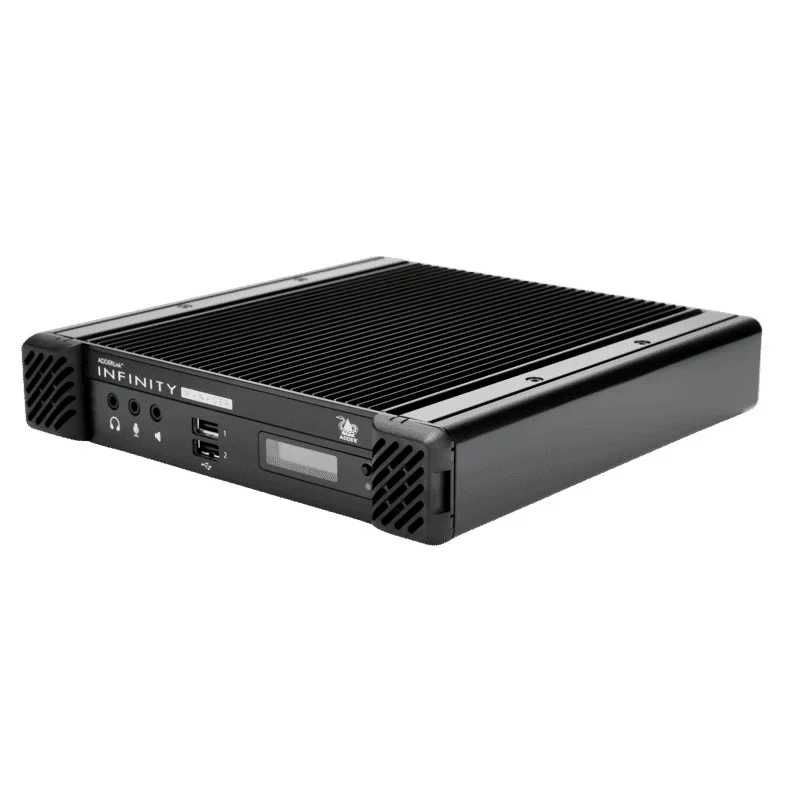

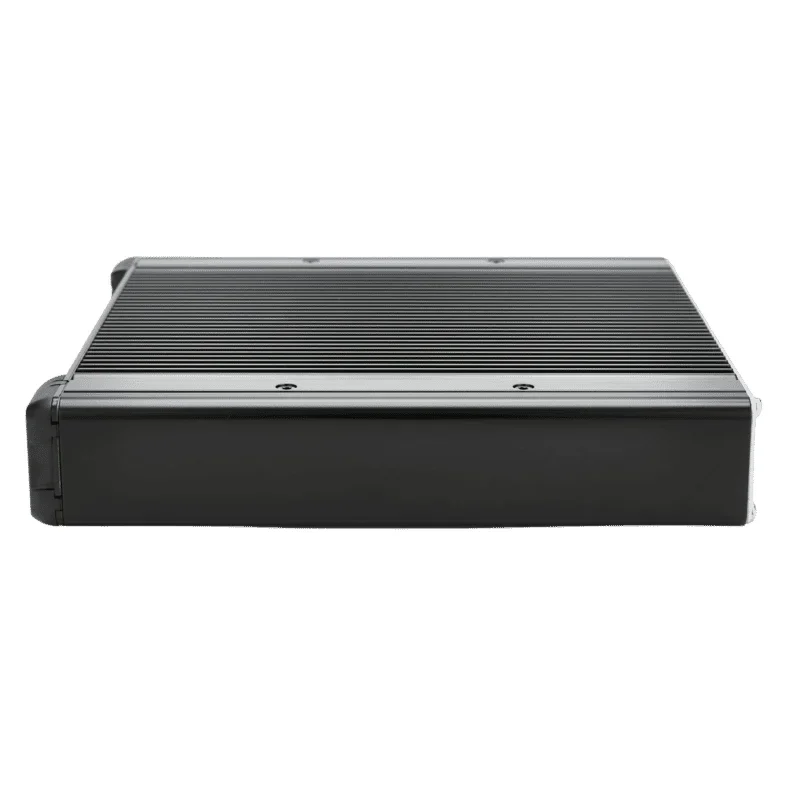

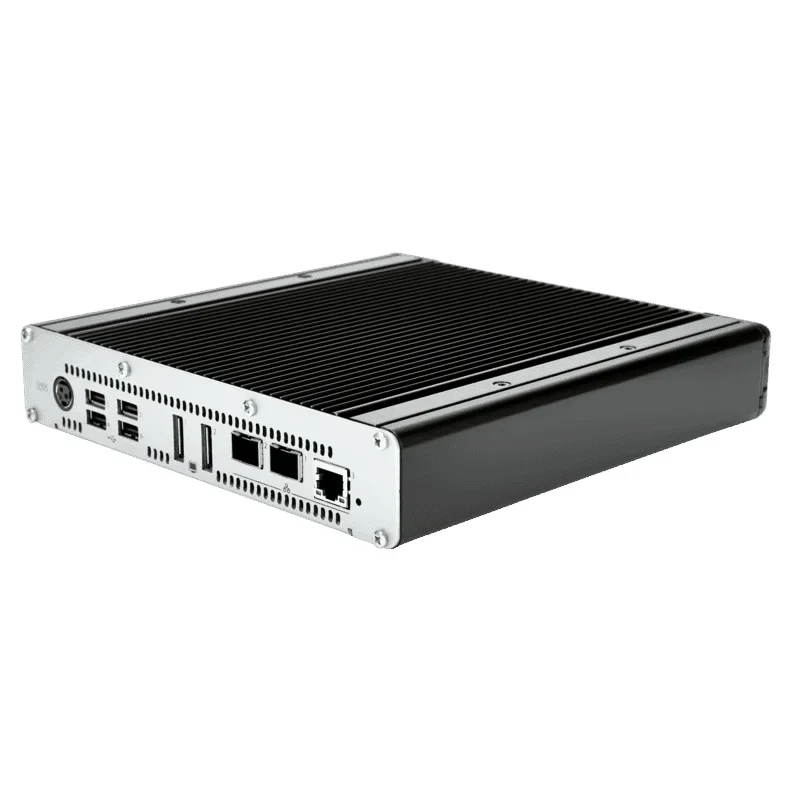

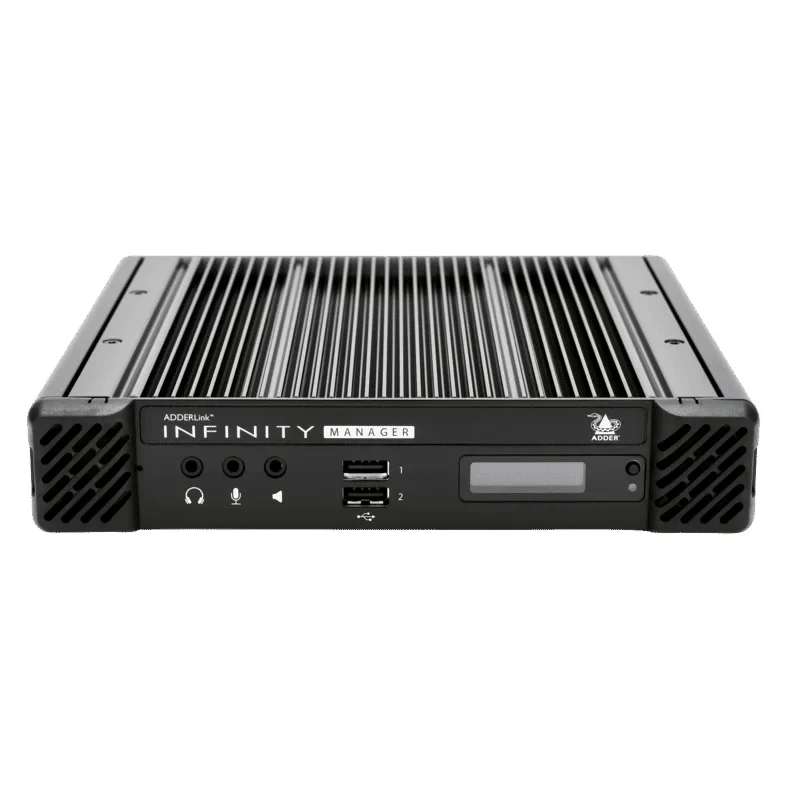

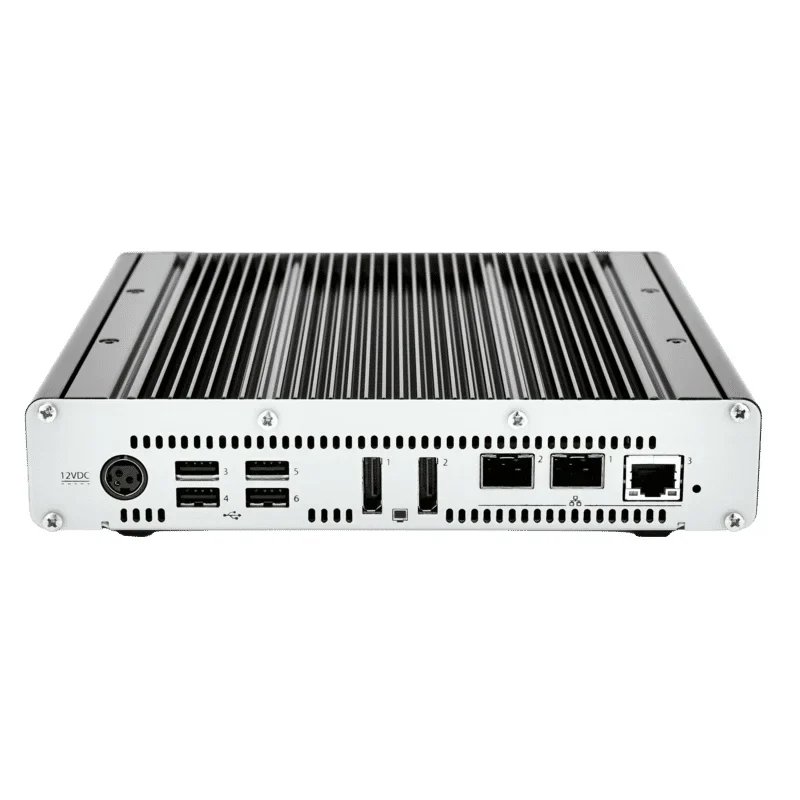

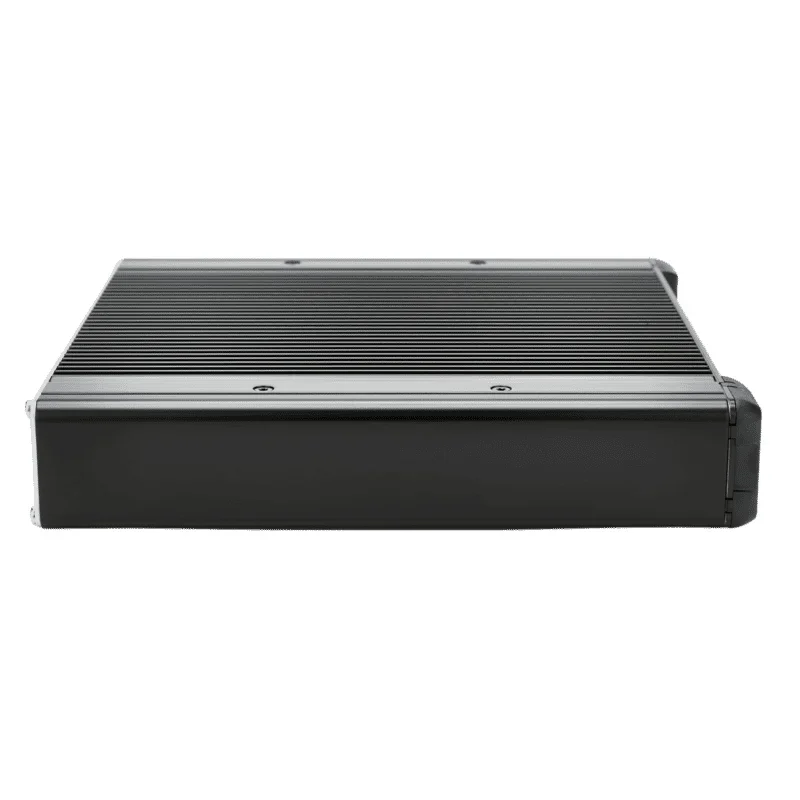

Management server for ADDERLink INFINITY IP KVM matrix
Manufacturer product images · for reference

The ADDERLink INFINITY Manager is a management server that transforms ADDERLink INFINITY endpoints into a high-performance IP KVM matrix solution. This fan-cooled appliance provides centralized control and switching capabilities for multiple INFINITY transmitters and receivers across the network. The manager enables complex routing scenarios and user access control for large-scale KVM deployments. - Centralized management for ADDERLink INFINITY matrix deployments - Dual SFP ports for 1GbE fiber or copper network connectivity - Fan-cooled metal construction for continuous operation - 77,500 hour MTBF rating for mission-critical applications - Extended storage temperature range for flexible deployment
| Brand | Adder |
|---|---|
| Category | Software |
| SFP | 2× |
| Depth | 210mm / 8.30in |
| Other | Cal Prop 65, China ROHS, EU REACH, UK REACH |
| Width | 215mm / 8.5in |
| Height | 40mm / 1.6in |
| Weight | 1.8kg / 4lb |
| Altitude | 2000m / 6562ft |
| Approvals | CE, cULus - E476334, FCC, ICES, RCM, UKCA |
| Bandwidth | 1GbE |
| Standards | ANSI 63.4, EN/IEC 62368-1, EN55032 /CISPR 32, EN55035/CISPR 35, EN61000-3-2, EN61000-3-3, EN63000, FCC pt15B, ICES003 |
| 8p8c (RJ45) | 1× |
| 10/100 Support | No |
| Storage Temperature | 0 to 60 °C / 32 to 140 °F |
| Construction Material | Robust metal construction |
| Maximum Power (Watts) | 60 |
| Operating Temperature | 0 to 40 °C / 32 to 104 °F |
| Typical Power (Watts) | 18 |
| Operating Humidity (%) | 10% - 90% (non-condensing) |
| Temperature Regulation | Built-in Fan |
| Mean Time Between Failure (MTBF) | 77,500 h |
Product information and images are compiled from the manufacturer's own publications; they do not depict a Sedan Mühendislik installation. Technical data is confirmed before ordering.
