The ADDERLink XDIP provides high-performance IP KVM extension and matrix switching with integrated video distribution functionality over Gigabit Ethernet networks. The system delivers HDMI video up to 1920 x 1200 at 60 fps with bi-directional audio and USB HID emulation, supporting both point-to-point extension and matrix applications.
- HDMI video — supports 1920 x 1200 at 60 fps with 8-bit color depth
- USB HID emulation — three USB-A ports for keyboard and mouse connectivity
- Gigabit Ethernet transport — 1GbE bandwidth with PoE 802.3af power option
- Bi-directional audio — 3.5mm input and output jacks for 2-channel 16-bit/48 kHz audio

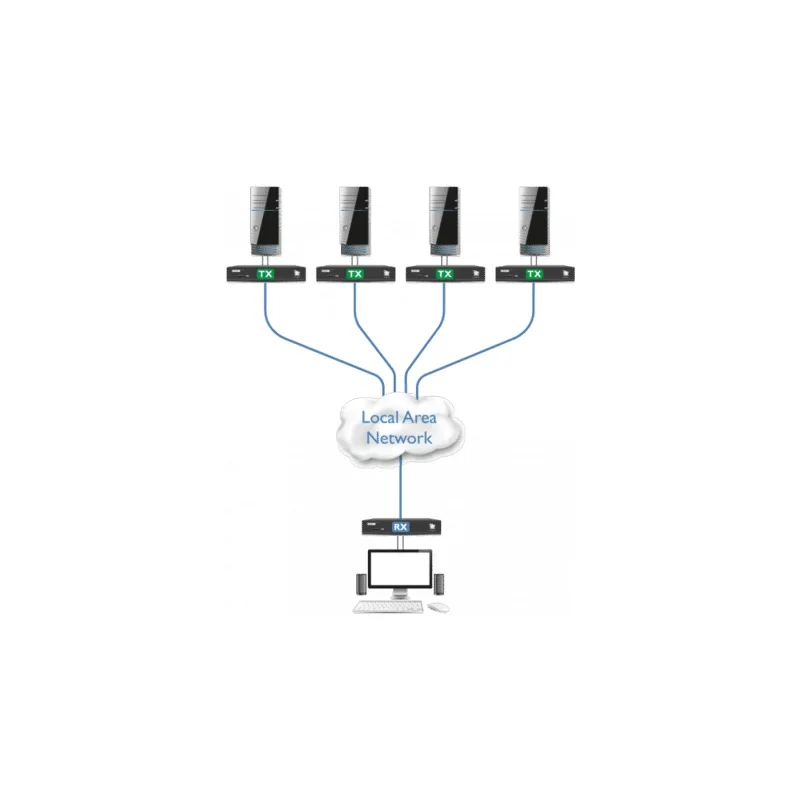

- Matrix capability — supports both extension and video distribution applications
Telcordia SR332 Issue 4 March 2016 Calculated @ 55C
10/100 Support
No
Audio In Ports
1× 3.5mm jack
Audio Direction
Bi-directional
Audio Out Ports
1× 3.5mm jack
OS Compatibility
All known operating systems
Input Power Supply
PoE (802.3.AF), External Power Supply Unit (see manual)
Maximum Resolution
1920 x 1200
Storage Temperature
0 to 40 °C / 32 to 104 °F
System Requirements
Does not support HDCP or CEC control
Maximum Cable Length
100m / 328ft
Storage Humidity (%)
10% - 90% (non-condensing)
Construction Material
Robust metal construction
Operating Temperature
0 to 40 °C / 32 to 104 °F
Operating Humidity (%)
10% - 90% (non-condensing)
Recommended Cable Type
CAT5e and above
Mean Time Between Failure (MTBF)
700,000 h
Product information and images are compiled from the manufacturer's own publications; they do not depict a Sedan Mühendislik installation. Technical data is confirmed before ordering.
