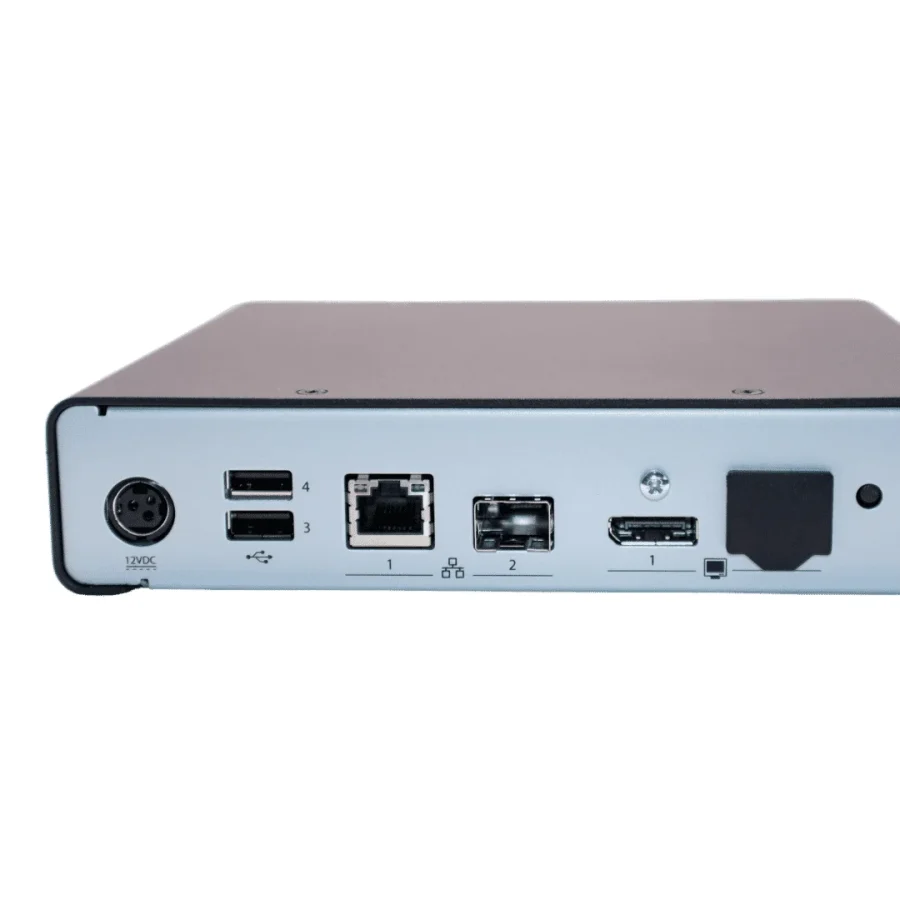

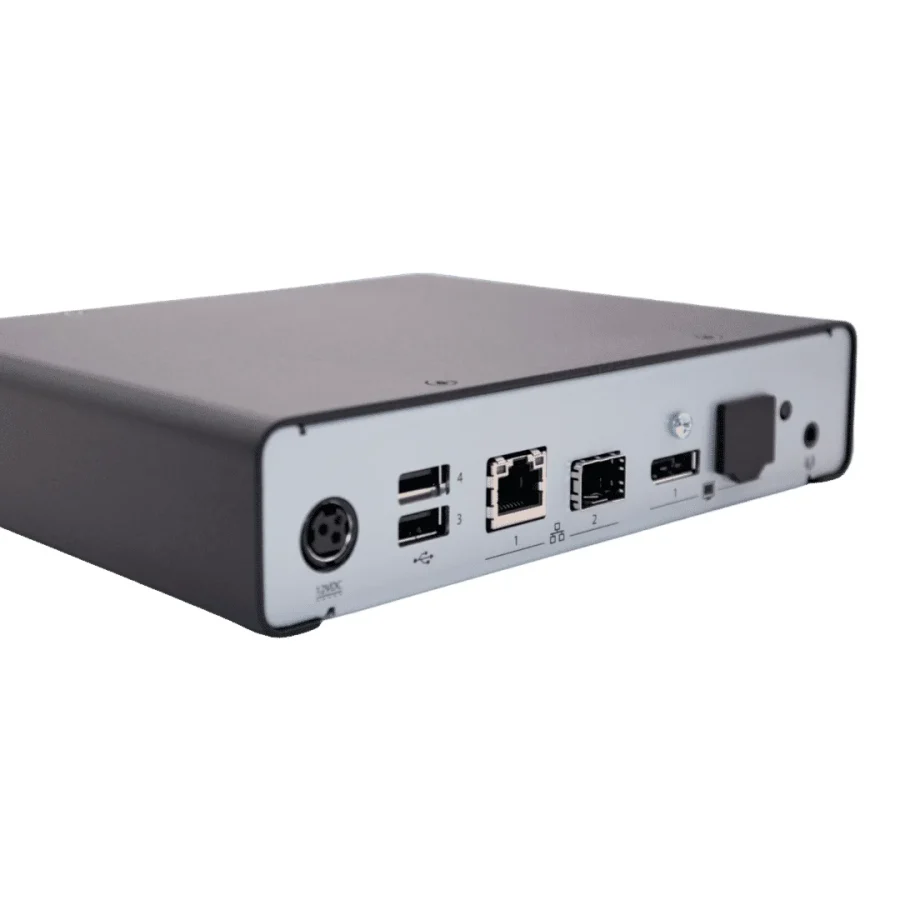

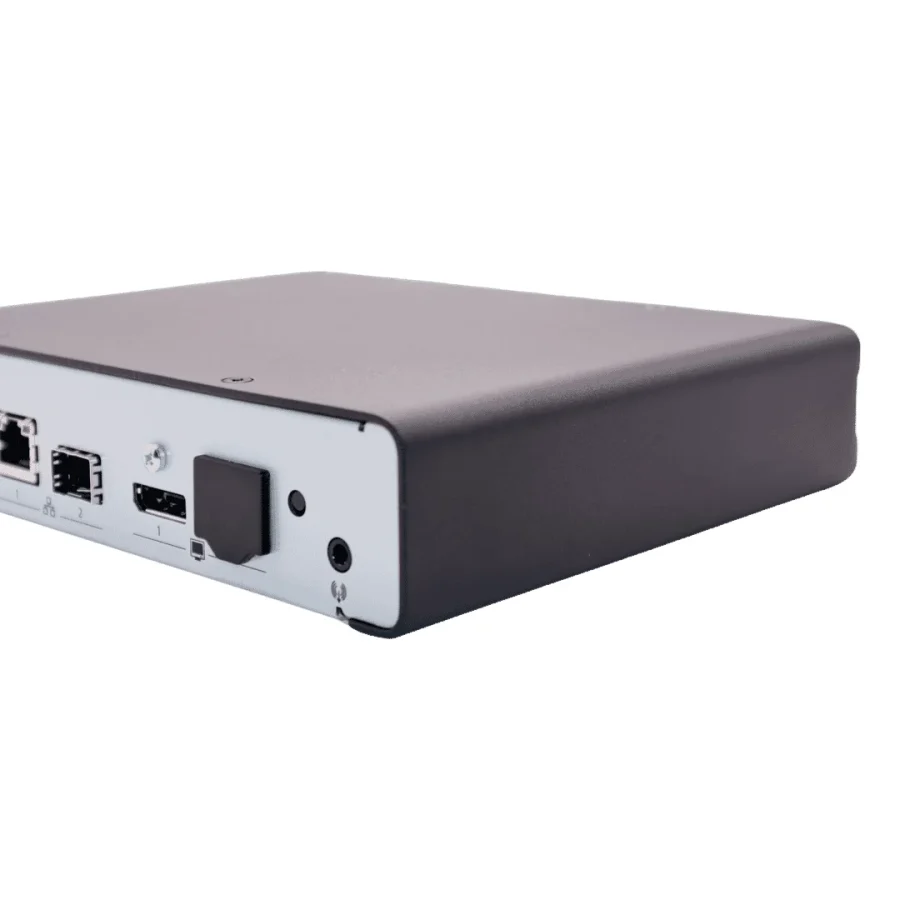

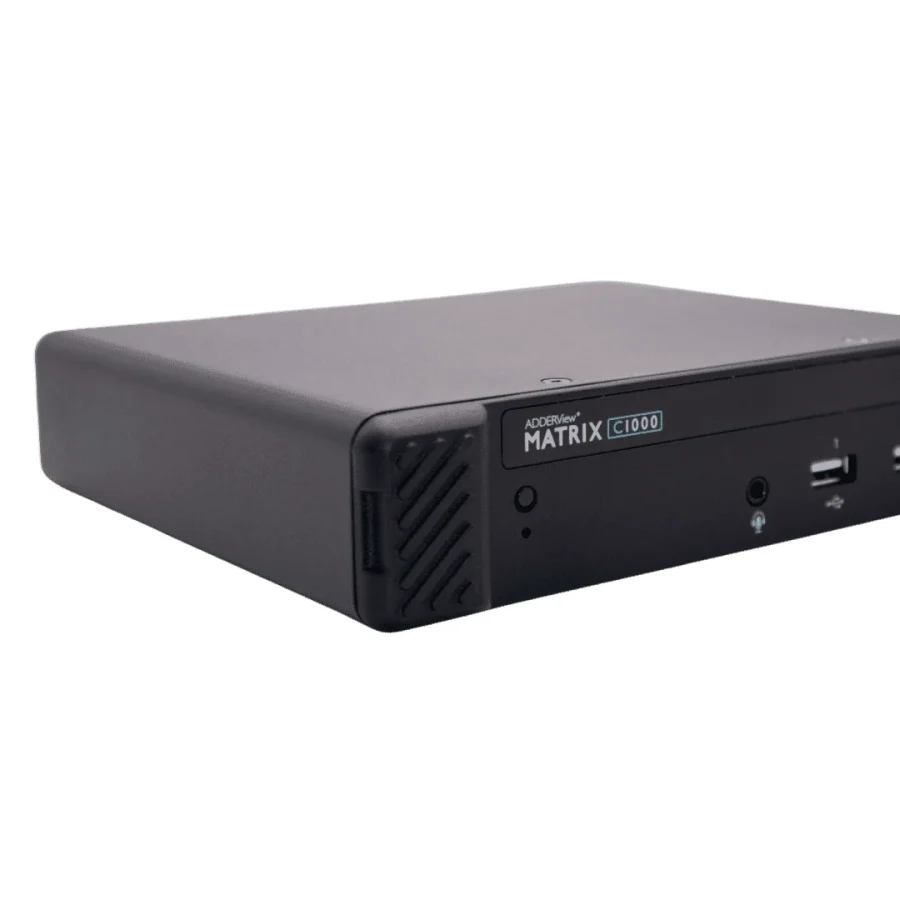

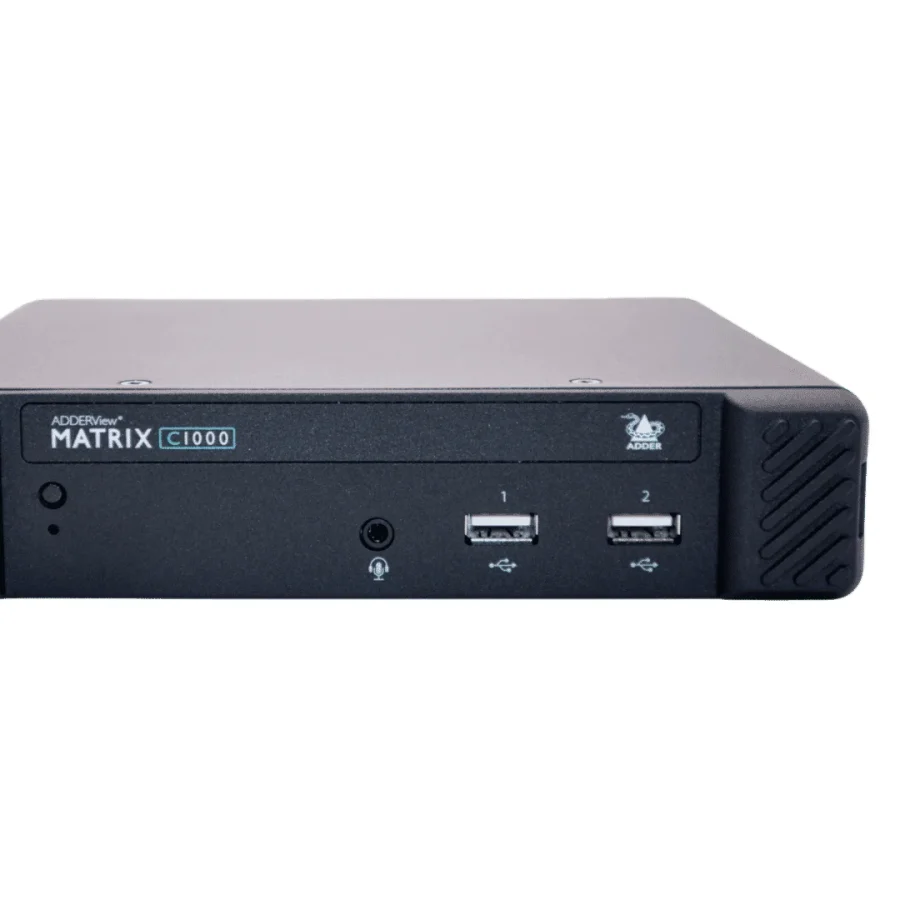

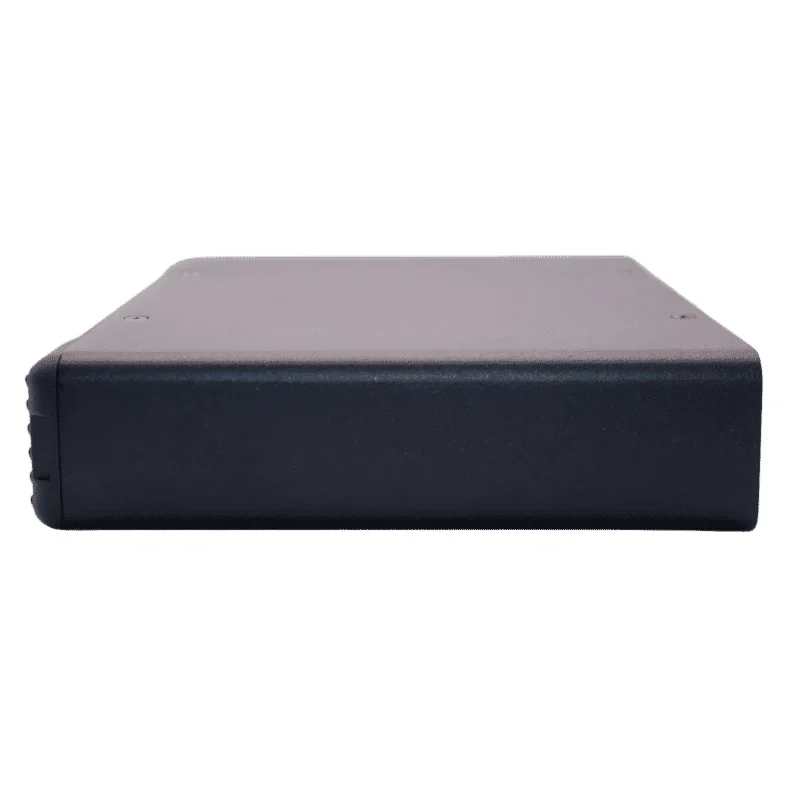

The ADDERView Matrix C1100 User Station provides single-head video extension and matrix switching over standard network infrastructure. Supporting resolutions up to 2560x1600 at 60Hz, it delivers DisplayPort 1.1 video, USB 2.0, and bi-directional audio over a single CAT5e cable up to 100 meters. The 1GbE IP-based system enables flexible matrix configurations using standard managed switches.
- 2560x1600 resolution — DisplayPort 1.1 dual-mode with 60Hz refresh rate
- 1GbE IP transport — uses standard network switches, 100m maximum cable length
- USB 2.0 true emulation — full-speed peripheral support with transparent operation
- Bi-directional audio — analog and 2-channel digital PCM with 48kHz/16-bit quality
- SFP connectivity — fiber-optic option for extended distances or electrical isolation
Telcordia SR332 Issue 4 March 2016 Calculated @ 55C
10/100 Support
No
Audio In Ports
1×
Audio Direction
Bi-directional
Audio Out Ports
1× 3.5mm jack
Input Power Supply
External Power Supply Unit (see manual)
Maximum Resolution
2560 x 1600
Storage Temperature
0 to 40 °C / 32 to 104 °F
Maximum Cable Length
100m / 328ft
Storage Humidity (%)
10% - 90% (non-condensing)
Construction Material
Robust metal construction
Full Size DisplayPort
× 1.1 (dual mode)
Maximum Power (Watts)
18
Operating Temperature
0 to 40 °C / 32 to 104 °F
Typical Power (Watts)
7
Additional Information
Digital Audio 2 channel linear PCM
Operating Humidity (%)
10% - 90% (non-condensing)
Recommended Cable Type
CAT5e and above
Temperature Regulation
Fanless
Mean Time Between Failure (MTBF)
340,000
Product information and images are compiled from the manufacturer's own publications; they do not depict a Sedan Mühendislik installation. Technical data is confirmed before ordering.
