Diaphragm integrated point of use with balanced valve - MS15

Manufacturer product images · for reference

Diaphragm integrated point of use with balanced valve - MS15 — manufacturer product image

MS15 is a terminal point of use for specialty gas applications in a laboratory or in a workshop. It is made up with a S15 pressure regulator and a VLM 200 valve.

Key features
  • Outstanding pressure consistency with Balanced Valve Technology.
  • Increased useful lifetime and lower ownership cost
  • Compact footprint and ergonomic design ideal for laboratory furniture
  • Dedicated food-grade version with full material compatibility according to EC1935/2004 available

Specialty gas systems

Technical specifications
BrandRotarex
CategorySpecialty gas systems
GaugesLow pressure (M10 x 1)
O-ringEPDM
WeightAluminum: ± 1,86 / Stainless steel: ± 3,8 kg
DiaphragmAISI 304 (aluminum version) / Hastelloy® (SS version)
Leak rate10 -8 m-bar-l-s
Seat sealEPDM
Oxygen useOK
Female portsG 3/8 (inlet/outlet) or 1/4 NPT (inlet/outlet)
Nominal flow50 Nm 3 /h (n2)
Inlet pressure25 bar (362,5 psi)
Outlet Pressure0,1-10 bar (145 psi)
Temperature range-20°C to +60°C / -4°F to +140°F

Product information and images are compiled from the manufacturer's own publications; they do not depict a Sedan Mühendislik installation. Technical data is confirmed before ordering.

More images

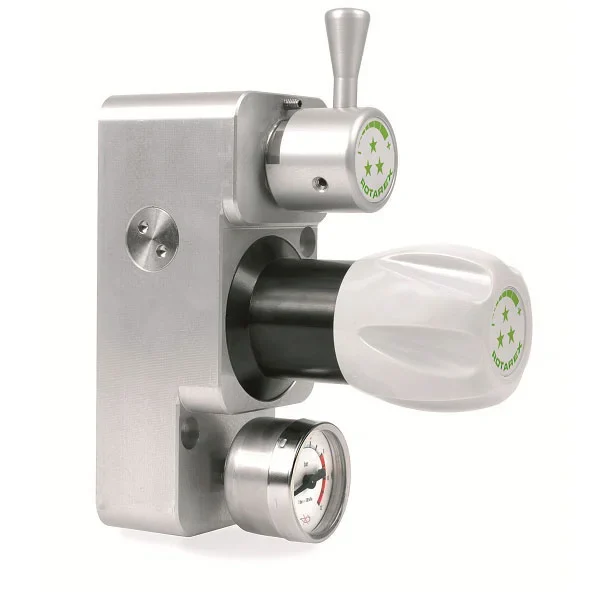

Diaphragm integrated point of use with balanced valve - MS15 — 1

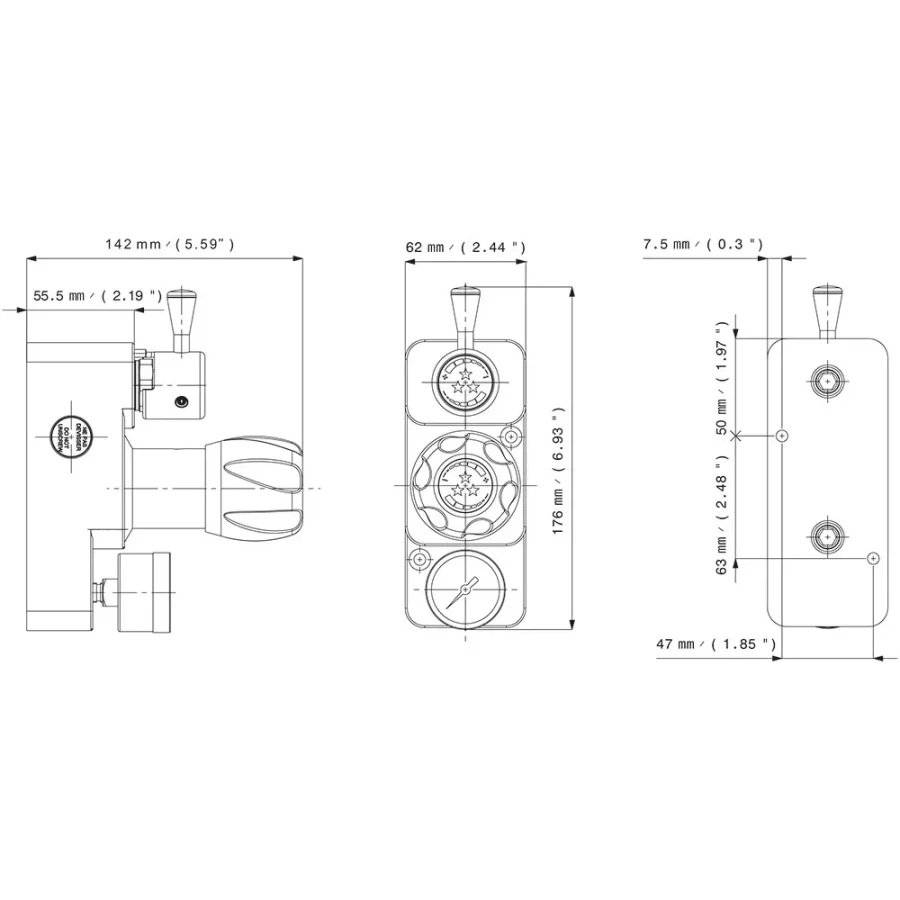

Diaphragm integrated point of use with balanced valve - MS15 — 2
