Diaphragm low pressure regulator with balanced valve for high flow - S15

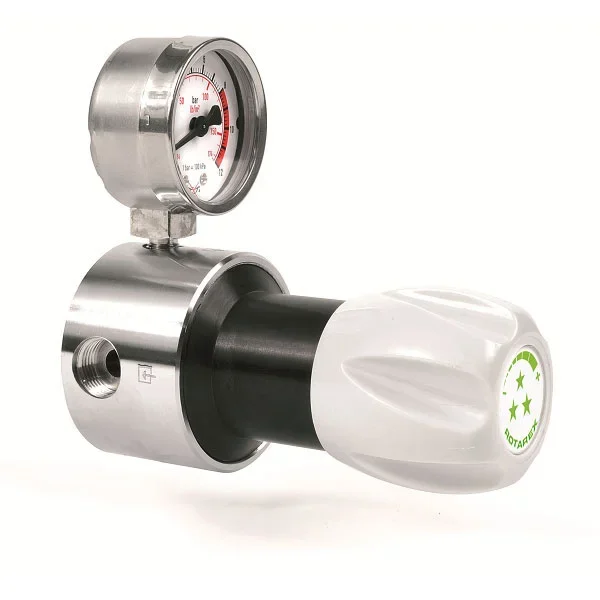

Manufacturer product images · for reference
S15 second stage line pressure regulator is designed for high-flow industrial or laboratory applications.
- Outstanding pressure consistency with Balanced Valve Technology.
- Can be used for many applications that need a high flow
- Wall and panel mounting possible with its compact design, the rear threads and the fixing ring
- Longer regulator lifetime and lower total ownership cost
- Dedicated food-grade version with full material compatibility according to EC1935/2004 available
Technical specifications
| Brand | Rotarex |
|---|---|
| Category | Specialty gas systems |
| Gauges | Low pressure (M10 x 1 or 1/4 NPT) |
| O-ring | EPDM |
| Weight | +/- 1,2 kg |
| Diaphragm | AISI 304 (brass version) / Hastelloy® (SS version) |
| Leak rate | 10 -8 M bar l/s |
| Seat seal | FPM / EPDM |
| Oxygen use | OK for brass and stainless steel |
| Female ports | G3/8 or 1/4 NPT (inlet/outlet) |
| Nominal flow | 50 Nm 3 /h (N2) |
| Inlet pressure | 25 bar / 362.5 psi |
| Outlet Pressure | 10 bar / 145 psi |
| Temperature range | -20°C to +60°C / -4°F to +140°F |
Product information and images are compiled from the manufacturer's own publications; they do not depict a Sedan Mühendislik installation. Technical data is confirmed before ordering.

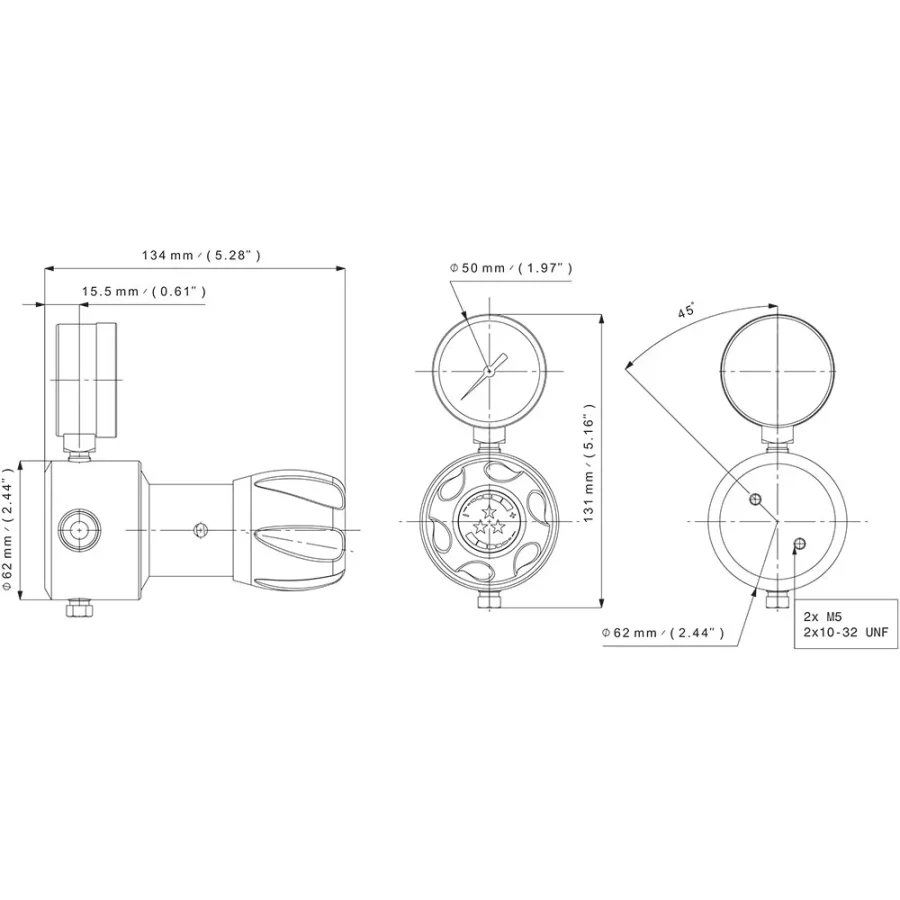

More images
