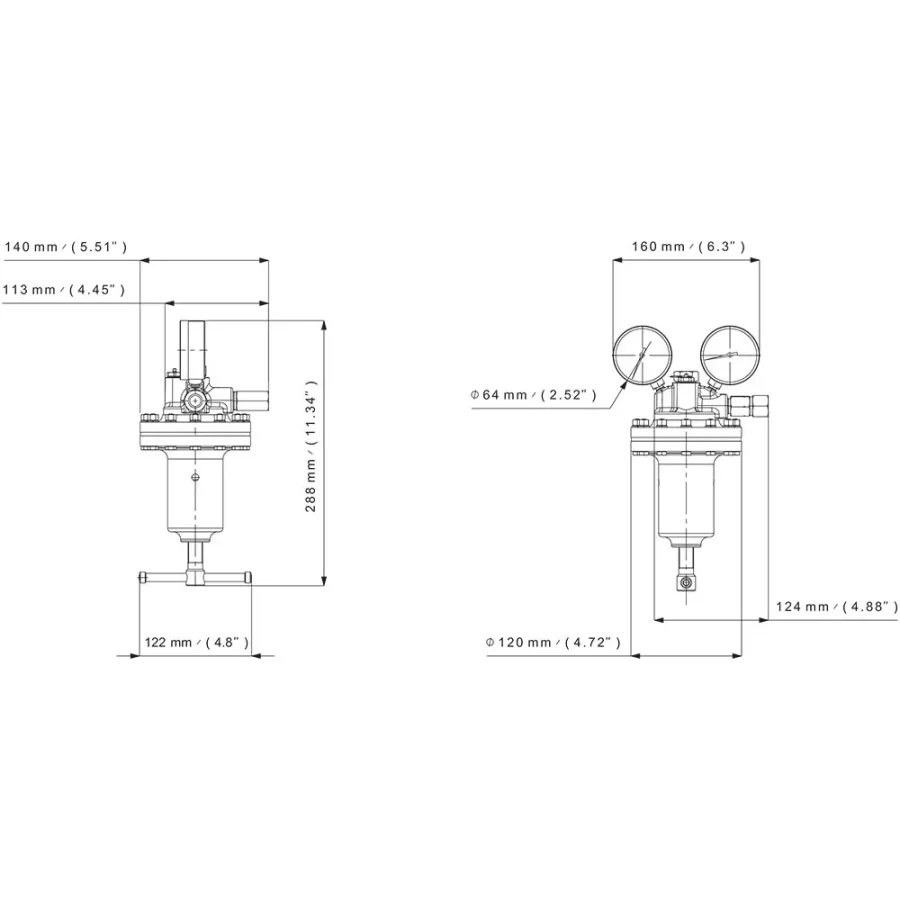

TGD250 is a single stage pressure regulator ideally suited for distribution of gases in industrial applications requiring very high flow like feeding of welding machines. A medical version is available for hospital application.
Inlet: 16 x 1.336 (Female) / Outlet: M20 x 1,5 (Male)
Gauges
High and low pressure (M10 x 1)
Weight
± 4,6 kg
Diaphragm
Butyl
Leak rate
10 -3 m-bar-l-s
Seat seal
PCTFE
Oxygen use
OK
Nominal flow
250 Nm 3 /h (n2)
Body material
Raw brass
Inlet pressure
200/230 bar / 2900/3336 psi
Outlet Pressure
20 bar / 290 psi
Temperature range
-20°C to +60°C / -4°F to +140°F
Product information and images are compiled from the manufacturer's own publications; they do not depict a Sedan Mühendislik installation. Technical data is confirmed before ordering.
