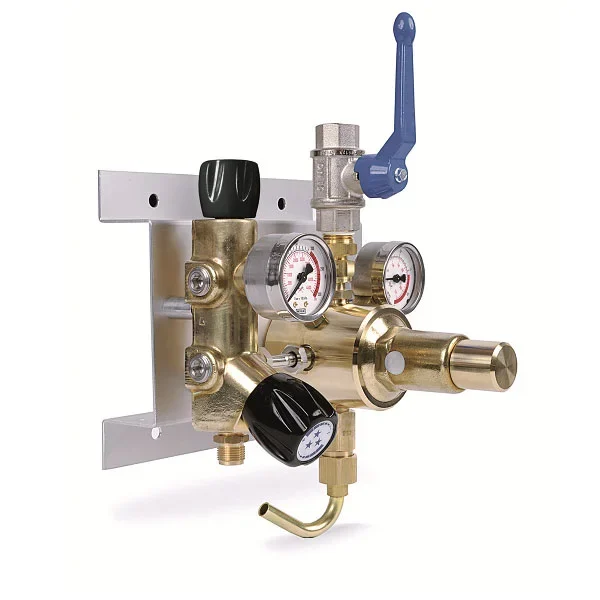

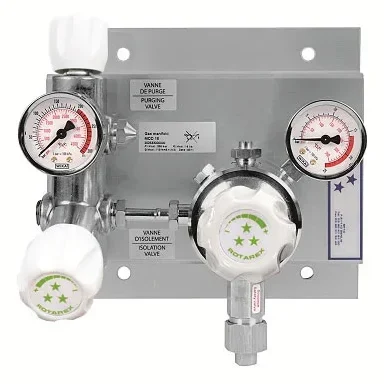

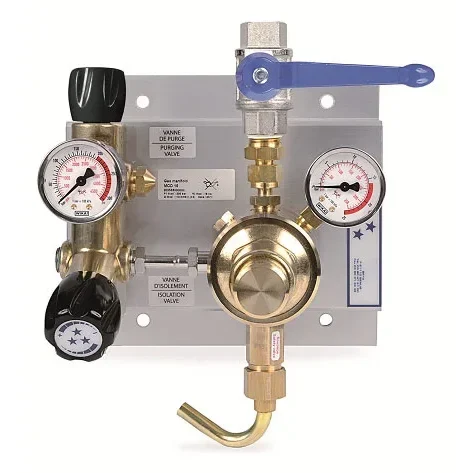

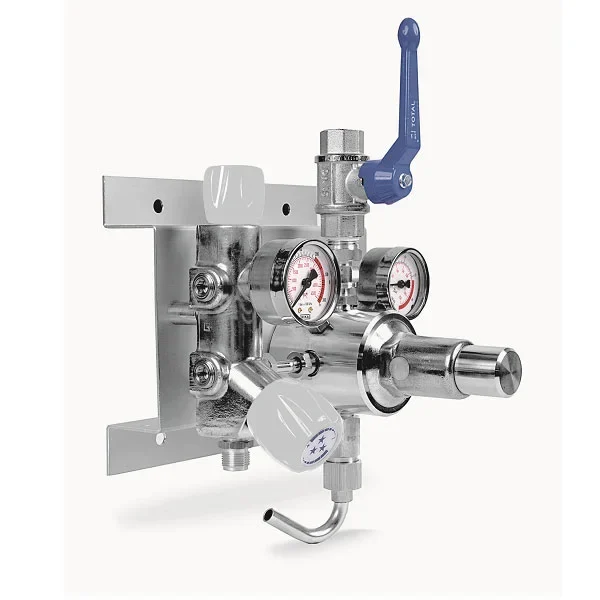

MOD is a supply board to use in combination with a switchover board for the regulation of the emergency source during maintenance on the principal source. This avoids installing extensions and reduces the amount of leaking points. It is particularly suitable for the high flow supply of industrial gases, except toxic and corrosive gases.
Key features
Outstanding pressure consistency with Balanced Valve Technology
Ready to install for better productivity: all components are pre-mounted on the mounting panel
Non-whipping filter improves safety of the operator during the cylinder replacement
Can be equipped with an outlet ¼ turn shut-off valve (Multi-turn valve with 30 bar or 50 bar version for oxygen use)
Can be connected to an alarm box using contact gauges
Acetylene (AD) and propane (PR4) versions available on demand
Dedicated food-grade version with full material compatibility according to EC1935/2004 available
w/outlet valve: 1.10-4 mbar ℓ/s He / w/o outlet valve: 1.10-8 mbar ℓ/s He
Seat seal
PCTFE
Oxygen use
OK with inlet pressure 200 and 300 bar
Female ports
In: G 3/8 / Out: G ½ / In: 3/8 NPT / Out: G 1
Inlet pressure
200 bar / 300 bar / AD and PR4: 25 bar
Outlet Pressure
10/16/30/50 bar / AD: 1 bar / PR4: 4 bar
Temperature range
-20 to +60 °C
Diaphragm (regulator)
AISI 304 / or Hastelloy®
Nominal flow ad and pr4
AD: 6,5 Nm3 /h / PR4: 10 Nm3 /h
Nominal flow 200 bar version
70/110/150/180 Nm3 /h (N2)
Nominal flow 300 bar version
50/70/100/130 Nm3 /h (N2)
