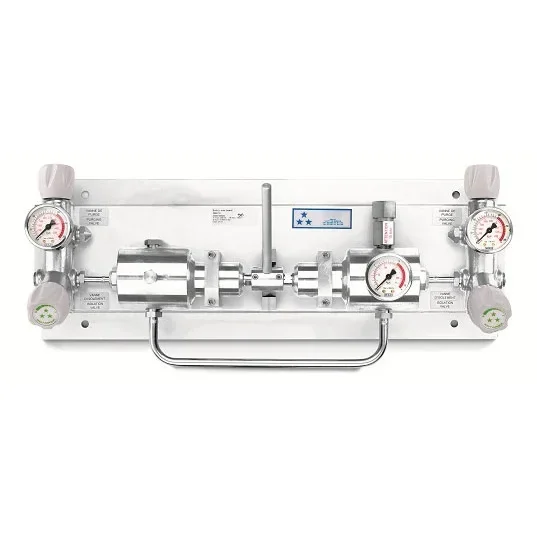

The CEN switchover board is suitable for the high flow supply of non-corrosive industrial gases when high flow are required like for plasma TIG and MIG cutting and welding applications.
Key features
Possible to connect up to 6 cylinders without using the purge line
Outstanding pressure consistency with Balanced Valve Technology.
Ready to install for better productivity: all components are pre-mounted on the mounting panel
Reduced seat effort increases life of the regulator and reduces the ownership cost
Non-whipping filter on bottom inlet improves safety of the operator during the cylinder replacement
Can be equipped with an outlet 1/4 turn shut-off valve, with a collection tube, with an alarm box
Acetylene (AD) and Propane (PR4) versions on demand
Dedicated food-grade version with full material compatibility according to EC1935/2004 available
w/outlet valve: 1.10 -4 mbar ℓ/s He / w/o outlet valve: 1.10 -8 mbar ℓ/s He
Seat seal
PCTFE
Oxygen use
OK with inlet pressure 200 and 300 bar
Female ports
G 3/8 (inlet) - G 1/2 (outlet) or 3/8 NPT (inlet) - G 1/2 (outlet)
Inlet pressure
200 bar / 300 bar / AD & PR4: 25 bar
Outlet Pressure
10/16/30/50 bar / AD: 1 bar / PR4: 4 bar
Temperature range
-20 to +60 °c
Nominal flow ad and pr4
AD: 6,5 Nm3 /h / PR4: 10 Nm3 /h
Nominal flow 200 bar version
70/110/150/180 Nm 3 /h (N2)
Nominal flow 300 bar version
50/70/100/130 Nm 3 /h (N2)
