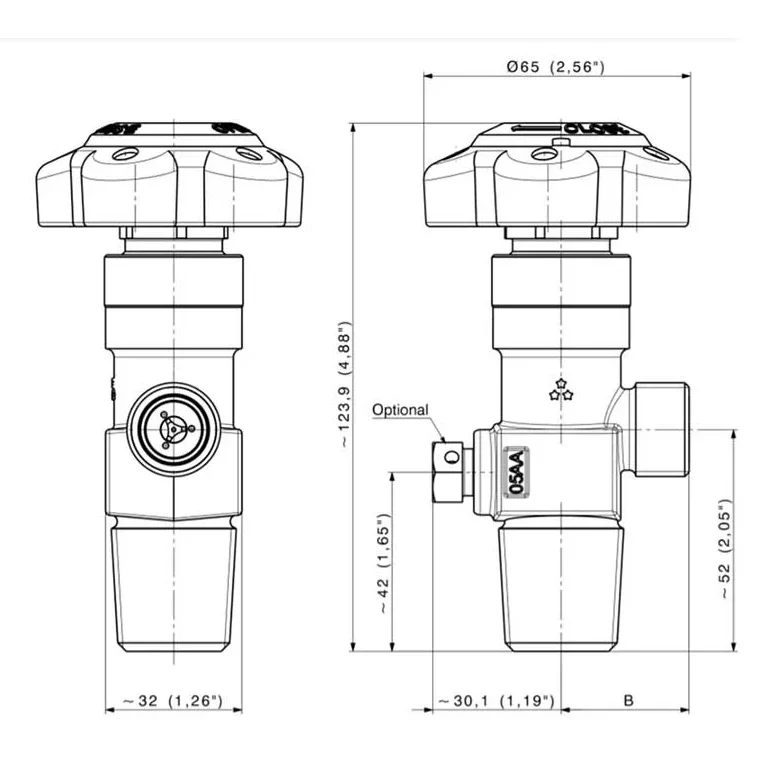

The high-pressure cylinder valve features a diaphragm seal, a soft seat, and an integrated residual pressure device for optimal safety and performance.
π0029 (according to TPED), manufacturing date, 3 stars, valve part number, valve inlet, valve outlet
Leak rate
1.10-7 m bar L/s
Connections
According (inter-)national standards and customer’s specifications
Body materials
Brass CW617N
Working pressure
200 bar
Nominal flow rate
CV = 0.2
Seat orifice size
3.5 Mm
Temperature range
-20 to +65 °c
Product information and images are compiled from the manufacturer's own publications; they do not depict a Sedan Mühendislik installation. Technical data is confirmed before ordering.
