Compact medical gas VIPR with flow selector - RM200 Light

Manufacturer product images · for reference

Compact medical gas VIPR with flow selector - RM200 Light — manufacturer product image

The RM200 Light valve with integrated pressure regulator from Rotarex Meditec is an all-in-one solution for Home Care Therapy. It combines shut-off valve, pressure regulator, flow selector, hose barb, pressure gauge and filling port in a unique device. The best solution for home care, nursing and emergency transportation.

Key features
  • Integrated pressure regulator
  • Portable & Lightweight design
  • Especially made for home care, nursing, homes & transportations

Medical gas valves and equipment

Technical specifications
BrandRotarex
CategoryMedical gas valves and equipment
BodyBrass, chrome plated
O-ringEPDM
Flow outletHose Barb
Filling portISO 5145 / CGA (Ø25 max)
Inlet pressure230 bar max. / 2000 psi
Outlet Pressure3.5 / 4.5 bars
Inlet connection17E, M18, 3/4 - 16 UNF - depending on volume
Temperature range-20°C to +65°C

Product information and images are compiled from the manufacturer's own publications; they do not depict a Sedan Mühendislik installation. Technical data is confirmed before ordering.

More images

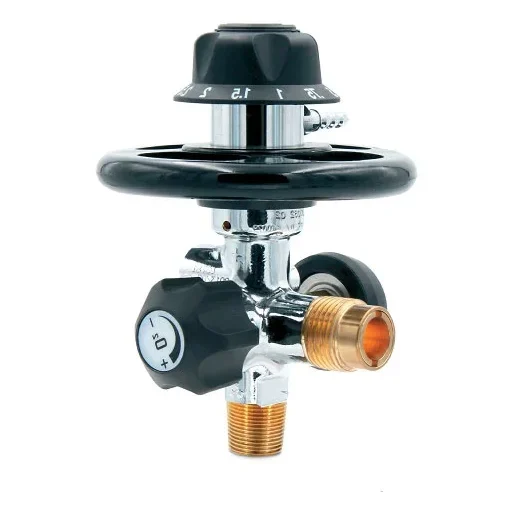

Compact medical gas VIPR with flow selector - RM200 Light — 1

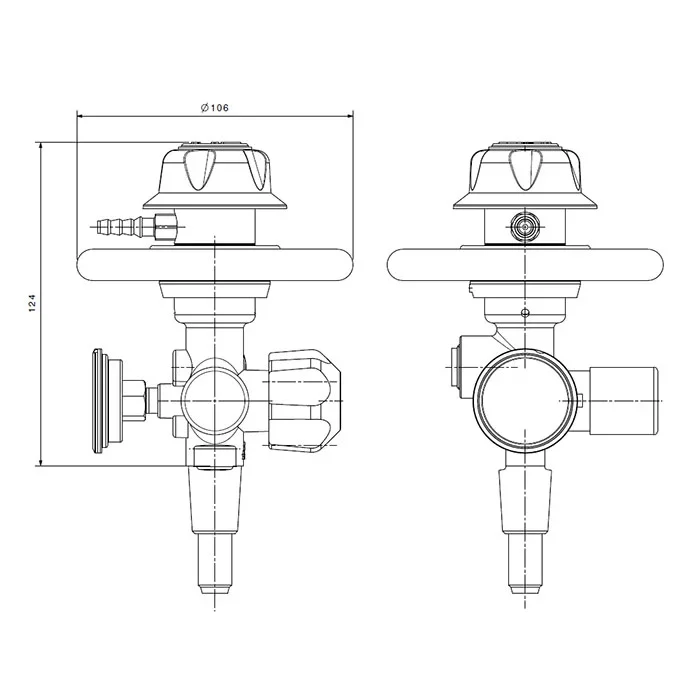

Compact medical gas VIPR with flow selector - RM200 Light — 2
