Diaphragm single stage high pressure regulator for medical gases - BSC290/390

Manufacturer product images · for reference

Diaphragm single stage high pressure regulator for medical gases - BSC290/390 — manufacturer product image

The BSC290/390 high Pressure Cylinder Regulator intends to be connected to therapy machines. It can be fitted with pressure sensors to manage the therapy parameters.

Key features
  • Enables gas supply continuity if primary, secondary and emergency sources are unavailable
  • Suitable for Oxygen and all medical gases
  • No gas contamination due to a metal-metal sealing
  • Medical CE certified according to MDD 93/42/EEC
  • Product complies with EN ISO 10524-1

Medical gas valves and equipment

Technical specifications
BrandRotarex
CategoryMedical gas valves and equipment
BodyChrome plated brass
O-ringEPDM
Weight1.4 kg
DiaphragmHastelloy®
Leak rate10- 8 mbar l/s He
Seat sealPolyamide
Nominal flow7 / 25 Nm3 /h (N2 )
Inlet pressure200 / 300 bar 2900 / 4350 psig
Outlet Pressure4 / 8 bar 58 / 116 psig
Inlet connectionCylinder connection
Outlet connectionHose barb or medical connector
Temperature range-40 to +60 °c

Product information and images are compiled from the manufacturer's own publications; they do not depict a Sedan Mühendislik installation. Technical data is confirmed before ordering.

More images

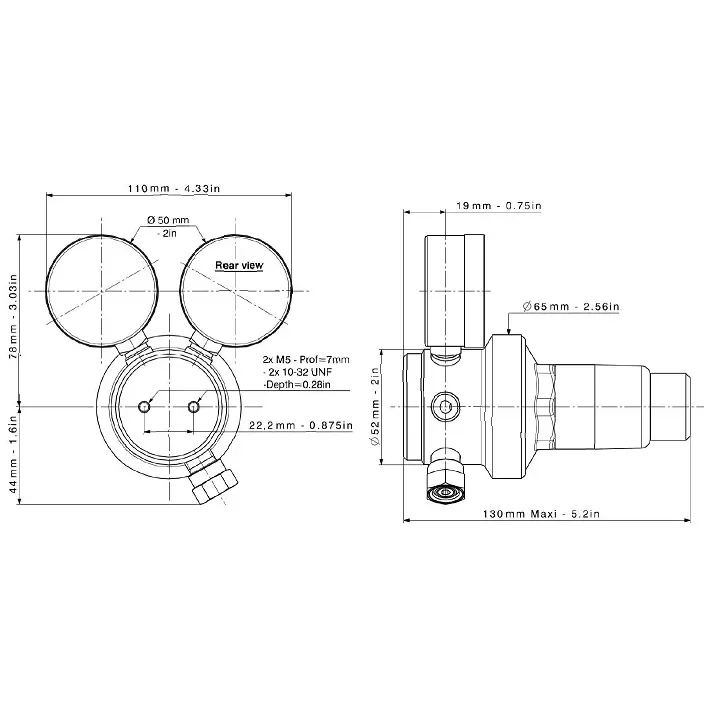

Diaphragm single stage high pressure regulator for medical gases - BSC290/390 — 1
