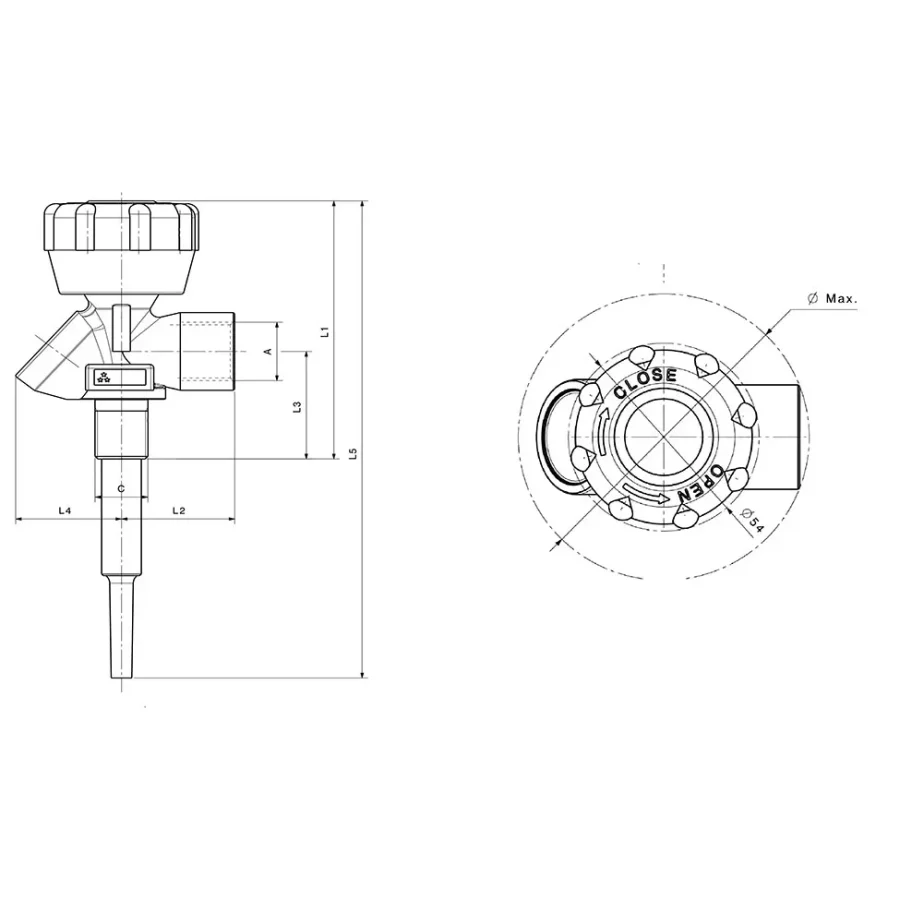

BREATHING AIR VALVES AND OTHER APP. WITH INTEGRATED MANOMETER - C311
Manufacturer product images · for reference
High pressure brass cylinder valve for Breathing Air service
- High pressure brass cylinder valve for Breathing Air service
- Permanent gas tight seal
- Choc resistant
- Integrated manometer
- π marking according TPED directive
- Tested according EN ISO 10297
Technical specifications
| Brand | Rotarex |
|---|---|
| Category | Industrial gas valves |
| Cv | 0,3 |
| Gas type | Breathing AIR |
| Material | Handwheel: neoprene / Seat: PA 6.6 / O-rings: EPDM / Body: brass |
| Seat orifice size | 3,5 Mm |
| Temperature range | -20 to +65 °c |
| Working pressure pmax. | 200 bar, 300 bar |
| Helium leak rate at pmax. | Internal 10 -3 mbarl/sec / External 10 -3 mbarl/sec |
| In- and outlet connections | In accordance with all country standards |
Product information and images are compiled from the manufacturer's own publications; they do not depict a Sedan Mühendislik installation. Technical data is confirmed before ordering.
