Diaphragm Single Stage High Pressure Regulator with Cartridge for Food Industry – SC290

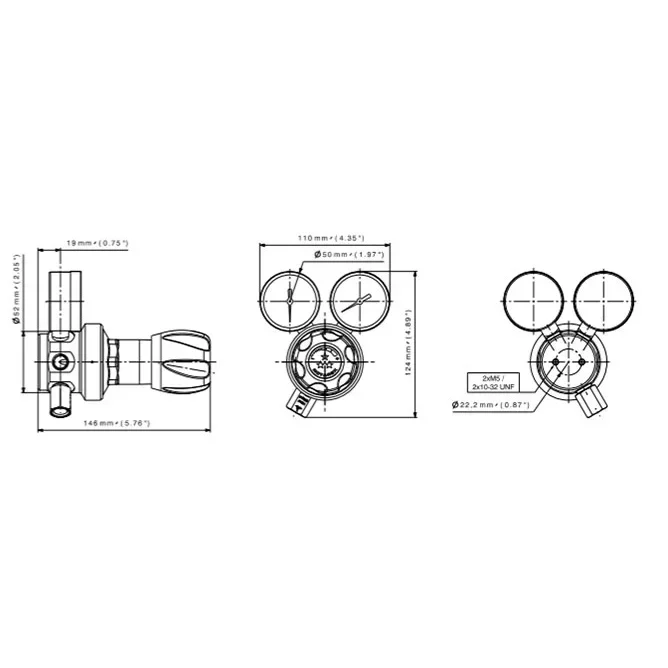

Manufacturer product images · for reference
SC290 F is a single stage high pressure cartridge regulator for food processing. The regulator is compliant with EC 1935/2004 food regulation.
- This single stage regulator is based on the Cartridge seat Technology
- Accurate pressure control for reliable service
- Could be equipped with a shut off valve
- Relief valve seat seals material: Brass version (EPDM), Stainless Steel (FPM)
- Dedicated food-grade version with full material compatibility according to EC1935/2004
Technical specifications
| Brand | Rotarex |
|---|---|
| Category | Industrial gas valves |
| Gauges | High and low pressure (1/4 NPT) |
| O-ring | PTFE |
| Weight | ± 1,4 kg |
| Diaphragm | Hastelloy® |
| Leak rate | 10 -8 mbar ℓ/s He |
| Oxygen use | OK with brass |
| Valve seal | PCTFE |
| Female ports | 1/4” NPT (Inlet/Outlet) |
| Inlet pressure | 200 bar / 2900 psi |
| Nominal flow cv | 50/75 Nm 3 /h (N2 ) 0.2 |
| Outlet Pressure | 1,6-16 / 3,5-35 bar / 232/508 psi |
| Temperature range | - 40 to + 60 °c |
Product information and images are compiled from the manufacturer's own publications; they do not depict a Sedan Mühendislik installation. Technical data is confirmed before ordering.
