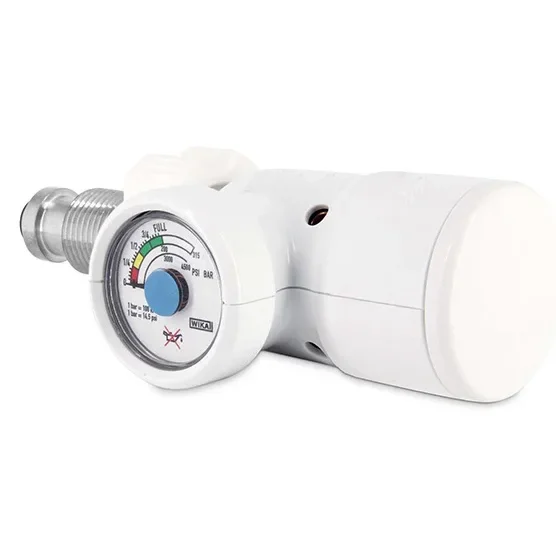

Fixed outlet pressure regulator for medical gases - M730 Alpinox
Manufacturer product images · for reference
The fixed outlet Alpinox medical gas pressure regulator provides a stable and constant outlet pressure from high-pressure medical gas cylinders, ensuring reliable supply to downstream medical devices. By delivering a controlled pressure rather than a set flow rate, it is particularly suited for ventilators, anesthesia systems, and other medical equipment that regulate their own gas flow internally. Its modern design with plastic cover makes it ergonomic, easily cleanable and fully shock resistant.
- Strong compatibility with oxygen and other medical gases
- Direct drive manometer resistant to shocks and vibrations
- Fixed outlet pressure for stable and reliable gas supply
- Designed to feed medical devices requiring regulated pressure
- Compatible with ventilators, anesthesia systems and respiratory equipment
- Proven technology used in medical VIPRS with a 10 years lifetime and no preventive maintenance
- MRI compatible
Technical specifications
| Brand | Rotarex |
|---|---|
| Category | Medical gas valves and equipment |
| Gas | Oxygen, Air, N2O/02, Other medical gases |
| Filter | Sintered bronze 20 μm |
| Weight | 0,67 kg (standard version) |
| Life time | 10 years |
| Pill test | Resistant to ASTM G175 |
| Ce marking | CE0123 |
| Flow range | From 0-6 Lpm to 0-25 Lpm |
| Body material | Brass |
| Seat material | Nylon |
| O-ring material | EPDM |
| Regulatory status | 10524-1 |
| Max inlet pressure | 200 bar / 2000 psig |
Product information and images are compiled from the manufacturer's own publications; they do not depict a Sedan Mühendislik installation. Technical data is confirmed before ordering.
