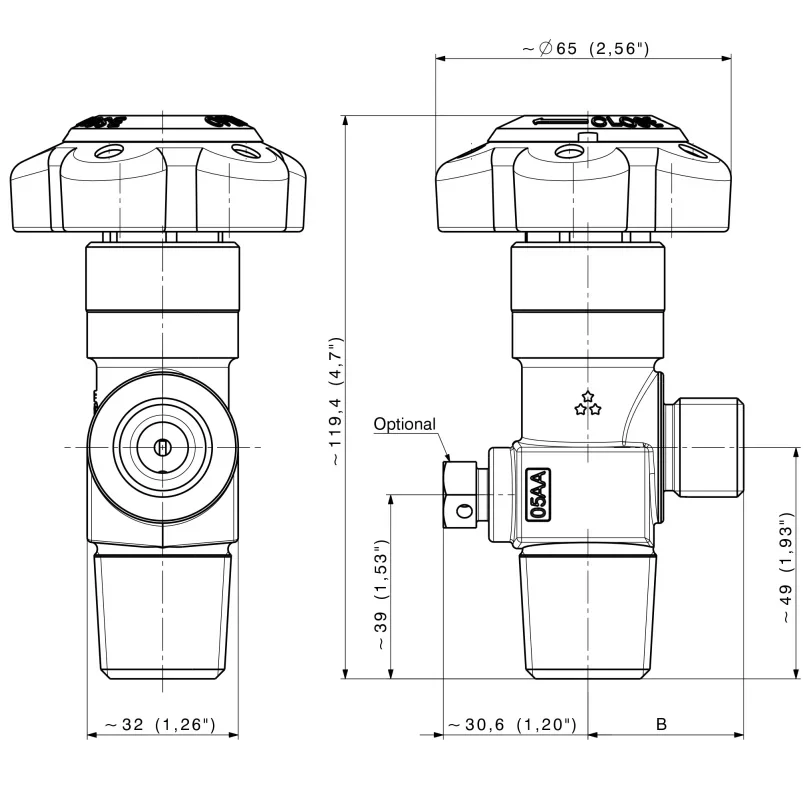

The D200 standard valve is designed to keep a high level of purity of the gas. The gas does not come into contact with the valve operating mechanism thanks to its diaphragm technology. The D200 is suitable for High purity, flammable or toxic gases, used in many fields of applications, as calibration, laboratories, research centers or in the food industry.
π0029 (according to TPED),Valve part number, manufacturing date, nominal pressure and flow direction, Connections - seat material, 3 stars
Gas Type
Pure & Ultra-pure
Flow rate
CV=0.35
Leak rate
1.10 -7 M bar l/s
Connections
According (inter-)national standards and customer specifications
Body materials
Brass, Stainless Steel, Nickel
Working pressure
200 bar
Seat orifice size
3.5 Mm
Temperature range
-40 to +65 °c
Product information and images are compiled from the manufacturer's own publications; they do not depict a Sedan Mühendislik installation. Technical data is confirmed before ordering.
