High pressure cylinder valves with pneumatic actuator for corrosive gases – D156S

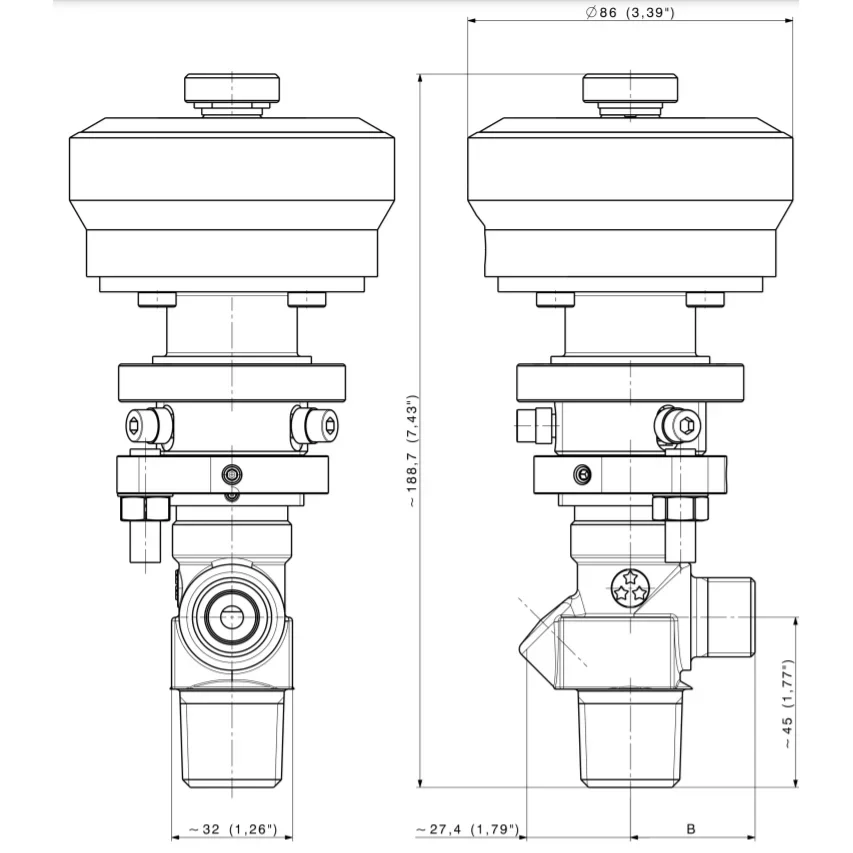

Manufacturer product images · for reference
High pressure Pneumatic cylinder valve - 2-piece Stem design - spring loaded gland packing - soft seat
- 2-piece sturdy stem design in order to reduce particle generation.
- Non rotating lower spindle for increasing tightness during life time.
- No particle shedding threading in gas wetted areas.
- Self-adjusting compression of V-packings using disc springs, allowing a service temperature range from -40° to +65°C.
- Locking nut having left-hand thread that secures the valve mechanism, even if excessive torques are applied.
- O-rings fitted behind V-packings guarantee a secondary sealing, and they avoid the risk of humidity coming in contact with the gas wetted areas.
- Soft seat induces low operating torque.
- Soft seat is fixed with a special screw and its design improves the valve’s robustness against over torques.
Technical specifications
| Brand | Rotarex |
|---|---|
| Category | UHP — ultra high purity |
| Marking | Production date, 3 stars, valve number |
| Leak rate | <1.10 -5 m bar L/s |
| Connections | Standards |
| Body materials | AlSI 303, AlSI 316L |
| Working pressure | 200 bar |
| Nominal flow rate | CV = 1.1 |
| Seat orifice size | 6 Mm |
| Temperature range | -40 to +70 °c |
Product information and images are compiled from the manufacturer's own publications; they do not depict a Sedan Mühendislik installation. Technical data is confirmed before ordering.
