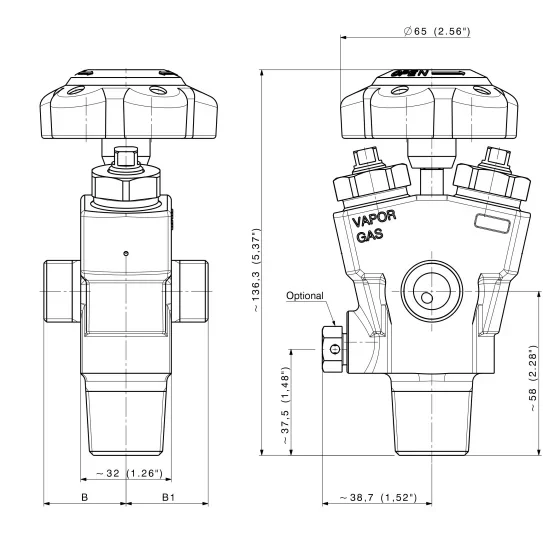

The D265 dual ported cylinder valve is intended for installation on cylinders filled with various High Purity gases. Its dual port design allows to withdraw liquid and vapor. This valve is available in Stainless steel or in brass version. It reduce potential leak risks avoiding the use of 2 valve systems.
Key features
Dual port design to withdraw liquid, vapor
Easy withdrawal of liquified gas by pressurizing through vapor port
Quick filling of liquified gas by releasing cylinder head pressure through additional vapor port
π0029 (according to TPED), manufacturing date, 3 stars, valve number
Gas type
High purity gases
Flow rate
CV= 0.35
Connections
According (inter-)national standards and customer’s specifications
Seat material
Hastelloy
Body materials
Brass, stainless steel
Helium leak rate
1.10-7 mbar l/sec (He)
Spindle material
AISI 303, AISI 316L, Brass, Nickel
Working pressure
200 bar
Seat Orifice Size
3.5 Mm
Temperature range
-20 to +65 °C
Diaphragm material
Hastelloy
Product information and images are compiled from the manufacturer's own publications; they do not depict a Sedan Mühendislik installation. Technical data is confirmed before ordering.
