RX507L is a large stainless-steel canister with a capacity 200L to 1000L (Up to 3000L). Designed for high-purity, metalorganic precursors and dopants. Can be fully customized in terms of choosing capacity, port configuration, and conduction of the required certification.
Key features
316L Stainless Steel
Helium Leak Test according to connection type
Excellent tightness
Electropolished: Std. 0.25 µm (10µin)
Easy port design
Traceability with each serial number (Name plate or Electrical body marking)

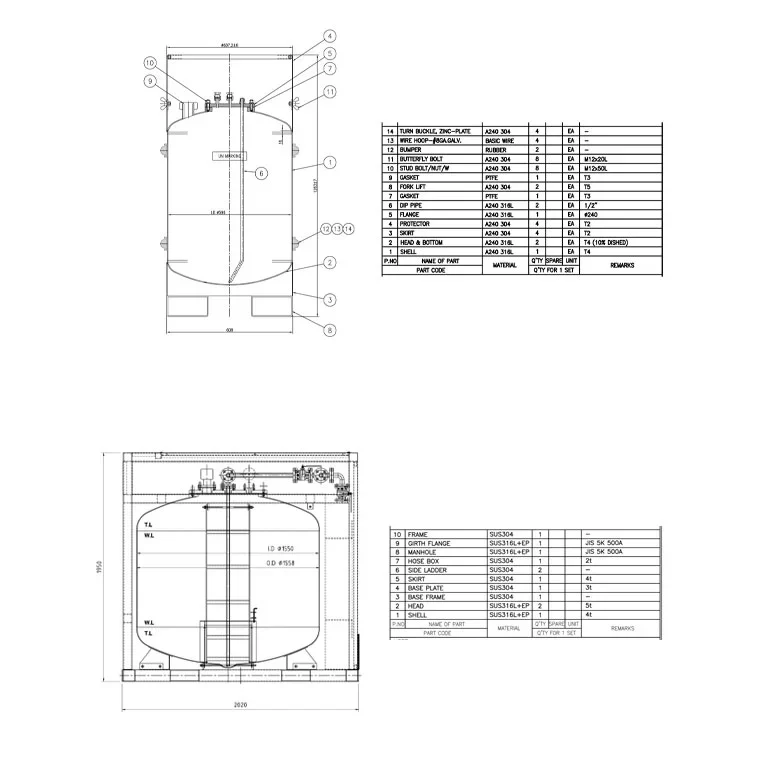

200L Canister: RX200B 200L C 4 D2N4R4 U PB / Body & Flange : SS 316L / Port : SS 316L EP metal face seal / Ra : 0.25 µm (10µin) / Handle : SS 304 1.2T / Flange seal gasket : PTFE (Standard) / Rz : 0.9 µm
Surface finish
Inside: #400 with EP / Outside: #400
Design pressure
0.7MPa
Temperature rating
-20°C to 120°C / -4°F to 248°F
Body thickness (mm)
4T
Max. working pressure
0.5MPa
Digital n2 pressure test
0.3 MPa/2hour
Certified max. helium inboard leak rate
< 1x10 -9 Mbar.l/s
