Line bundle valves - C140/C141
Manufacturer product images · for reference

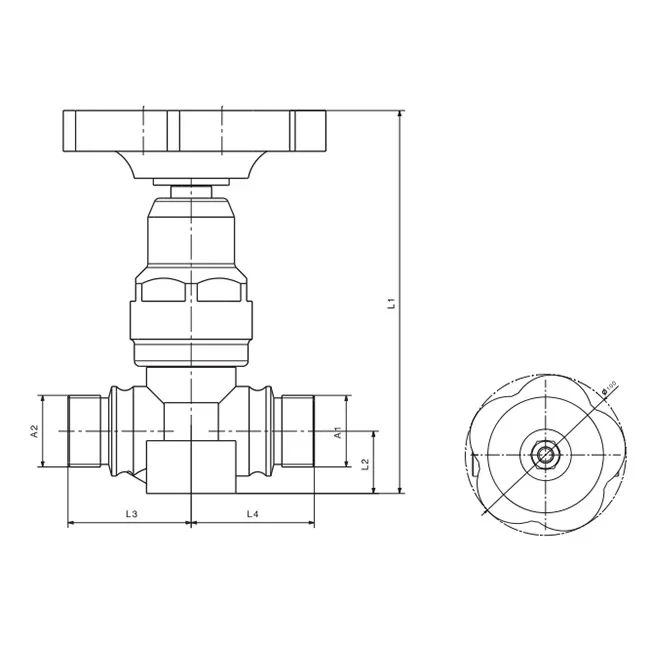

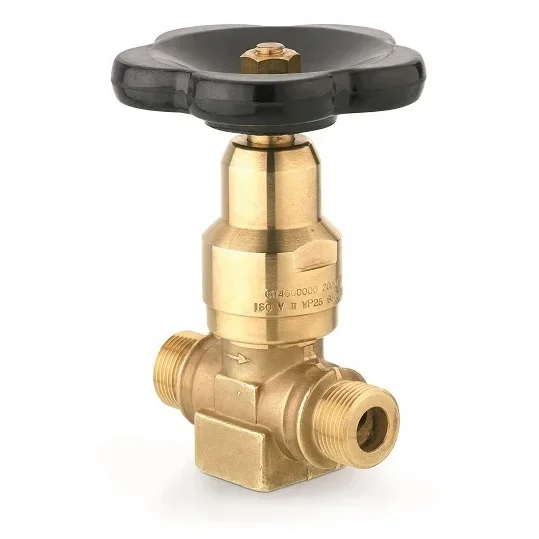

High Pressure Line valve for O2, inert & mix and C2H2 Bundle applications - C 140: line configuration C 141: angle configuration.
- High pressure brass bundle valve for Oxygen, Inert, Inert mixtures and flammable gas service
- Permanent gas tight seal
- π marking according TPED directive
- Tested according EN ISO 10297
- Adiabatic compression tested to avoid oxygen ignitions
Technical specifications
| Brand | Rotarex |
|---|---|
| Category | Industrial gas valves |
| Cv | 2 |
| Safety | C140: No / C141: Yes |
| Gas type | O2, Inert |
| Material | Handwheel: aluminium / Seat: PCTFE / O-rings: EPDM / Body: brass |
| Seat orifice size | 10 Mm |
| Temperature range | -20 to +65 °c |
| Working pressure pmax. | 300 bar |
| Helium leak rate at pmax. | Internal 10 -3 mbarl/sec / External 10 -3 mbarl/sec |
| In- and outlet connections | In accordance with all country standards |
Product information and images are compiled from the manufacturer's own publications; they do not depict a Sedan Mühendislik installation. Technical data is confirmed before ordering.
