Rotarex · UHP — ultra high purity

Low pressure dual port brass cylinder valves - D285

Request a quote
+90 553 213 45 39

Manufacturer product images · for reference

Low pressure dual port brass cylinder valves - D285 — manufacturer product image

cylinder valve - Dual port - Diaphragm Seal type with RPV

Key features
  • Soft seat sealing arrangement offers low operating torque
  • Valve seat captivated to avoid extrusion and blockage of the valve
  • High leak tightness integrity through diaphragm sealing
  • High performance thrust pad

UHP — ultra high purity

Technical specifications
BrandRotarex
CategoryUHP — ultra high purity
SafetyCG1 – 2- 3 -4 -5 – 7
Leak rate1.10-7 m bar L/s
Connections¼” SAE
Body materialsBrass CW617N or stainless steel 1.4305 (AISI 303)
Working pressure45 bar
Nominal flow rateCV = 1.0
Seat orifice size8 Mm
Temperature range-40 to +65 °c

Product information and images are compiled from the manufacturer's own publications; they do not depict a Sedan Mühendislik installation. Technical data is confirmed before ordering.

More images

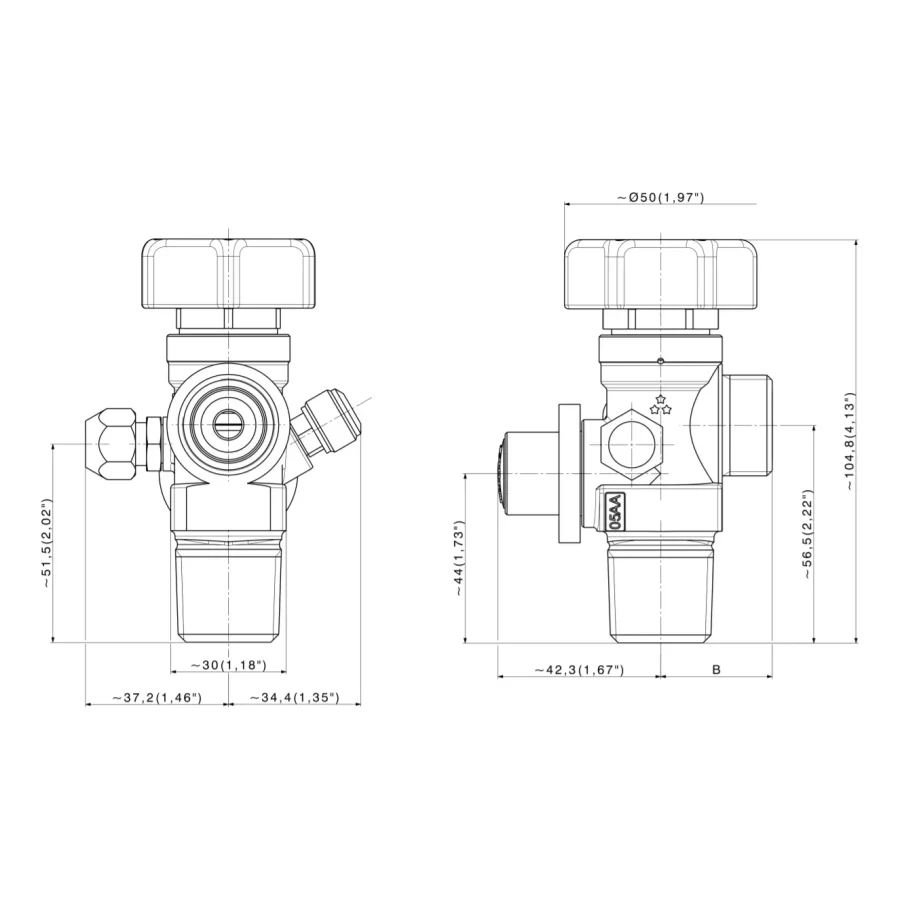

Low pressure dual port brass cylinder valves - D285 — 1
