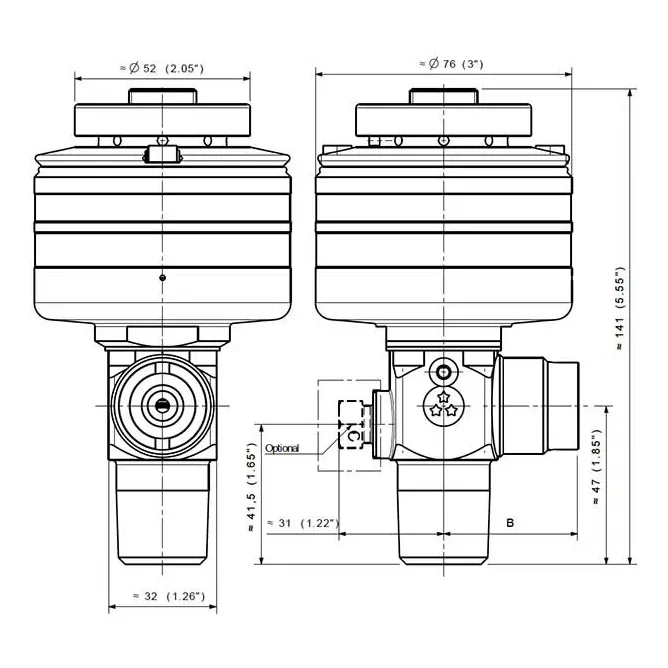

D387 low pressure pneumatic cylinder valve for UHP, corrosive, reactive and toxic gases is designed with the tied-diaphragm in order to keep the highest level of purity of the gas. Its 8mm orifice size allows a high CV value.
Key features
Reduced dead space and gas wetted volumes allow easy purging
No particle generating threads in the gas wetted part
Prevents seizure - Gas does not come into contact with the valve operating mechanism
Back-up welded diaphragms provide a permanent and durable gas tight seal
Product information and images are compiled from the manufacturer's own publications; they do not depict a Sedan Mühendislik installation. Technical data is confirmed before ordering.
