Rotarex · Medical gas valves and equipment

Medical nitric oxide valve with integrated pressure regulator D551

Request a quote
+90 553 213 45 39

Manufacturer product images · for reference

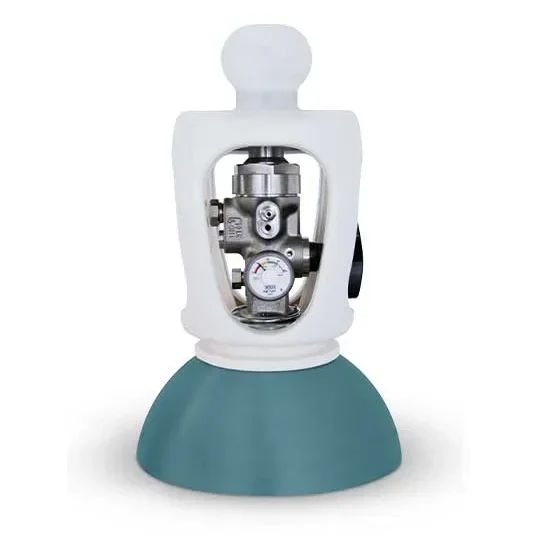

Medical nitric oxide valve with integrated pressure regulator D551 — manufacturer product image

The first stainless steel valve with integrated pressure regulator (VIPR).

Key features
  • All-in-one solution with no need for other peripherical devices
  • Stainless steel ensures the durable and safe usage
  • Compact design for comfortable use and easy transportation
  • Adaptable and easily connectable
  • Compliant to international standards: EN ISO 10524-3 / ISO 10297 / ISO 15996
  • Individual serial number for full traceability
  • Increased safety because of no high pressure access

Medical gas valves and equipment

Technical specifications
BrandRotarex
CategoryMedical gas valves and equipment
MarkingΠ marking Rotarex item number, manufacturing date, Filling port dimension, inlet port dimension, seat material, valve body material, Type of RPD, Working Pressure, values of pressure relief device, gas mixture, outlet pressure, Made in Luxembourg, 3 stars Logo, Serial Number
StandardsEN ISO 10524-3 / ISO 10297 / ISO 15996
Working pressure150 bar
Inlet connections1 1/8” – 12UNF – 2A Max. Working
Output connectionQuick connector outlet: Rectus
Storage temperature range–40 °C to +65 °C
Operating temperature range0°C to +60 °C
Max. working output pressure / outflowDepend on the requirements of the customer

Product information and images are compiled from the manufacturer's own publications; they do not depict a Sedan Mühendislik installation. Technical data is confirmed before ordering.

More images

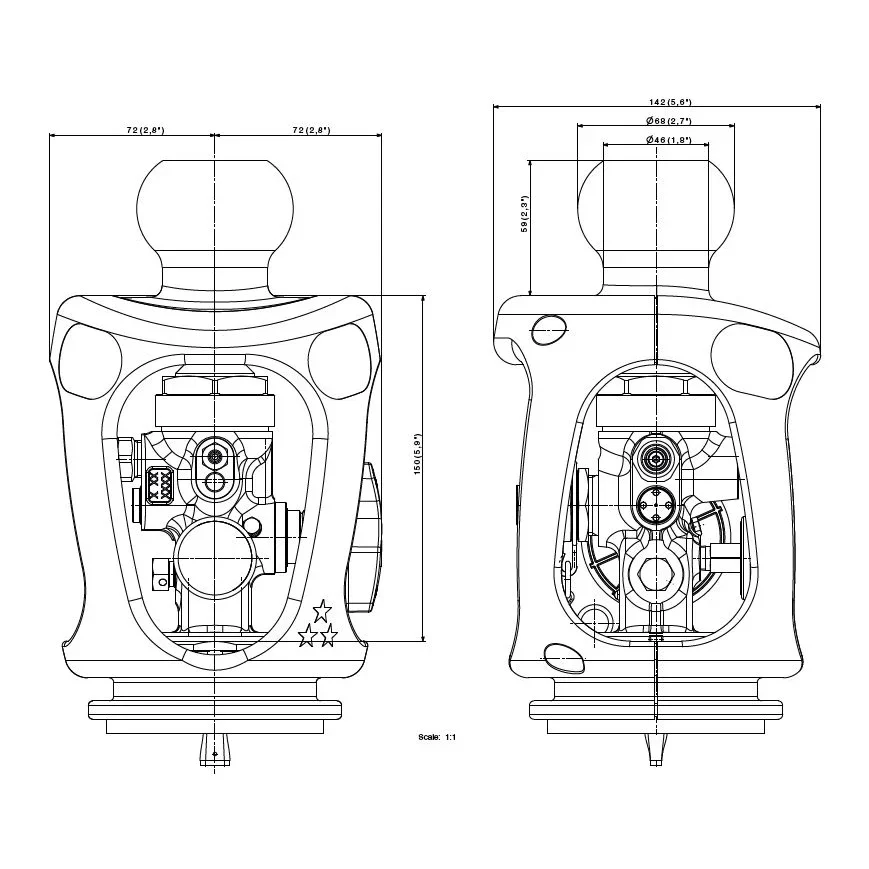

Medical nitric oxide valve with integrated pressure regulator D551 — 1
