RX171L is a medium stainless-steel canister with a capacity 17L to 100L, for production purposes. Designed for high-purity, metalorganic precursors and dopants. Can be fully customized in terms of choosing capacity, port configuration, and conduction of the required certification.
Key features
316L Stainless Steel
Helium Leak Test according to connection type
Excellent tightness
Electropolished: Std. 0.25 µm (10µin)
Easy port design
Traceability with each serial number (Name plate or Electrical body marking)

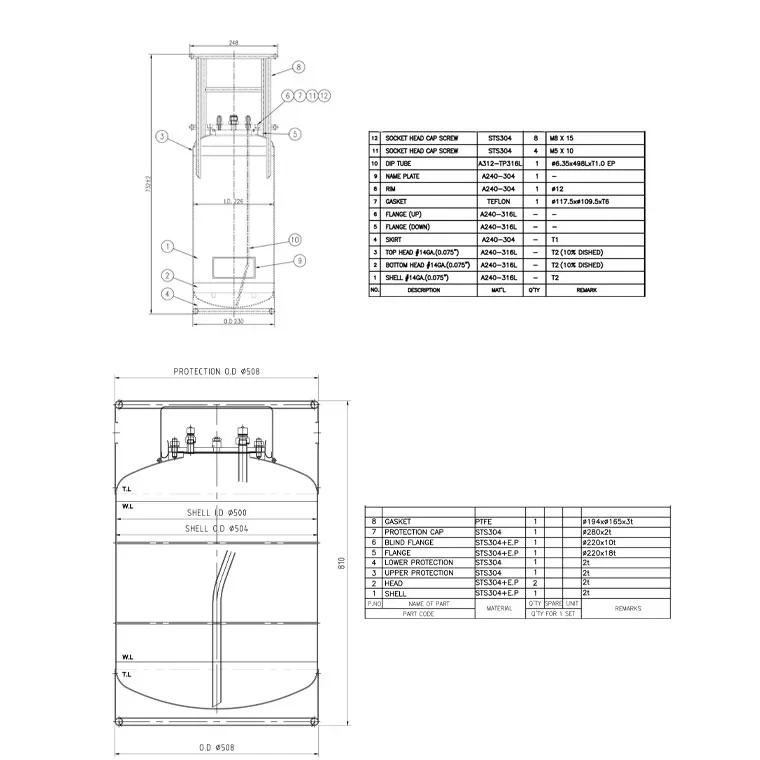

19L Canister: RX171L 19L C 2 D1N1R2 U H / Body & Flange : SS 316L / Port : SS 316L EP metal face seal / Ra : 0.25 µm (10µin) / Handle : SS 304 12T / Flange seal gasket : PTFE (Standard) / Rz : 0.9 µm
Product information and images are compiled from the manufacturer's own publications; they do not depict a Sedan Mühendislik installation. Technical data is confirmed before ordering.
