Rotarex · Medical gas valves and equipment

Pin Index cylinder valve with RPV for medical gases - M650

Request a quote
+90 553 213 45 39

Manufacturer product images · for reference

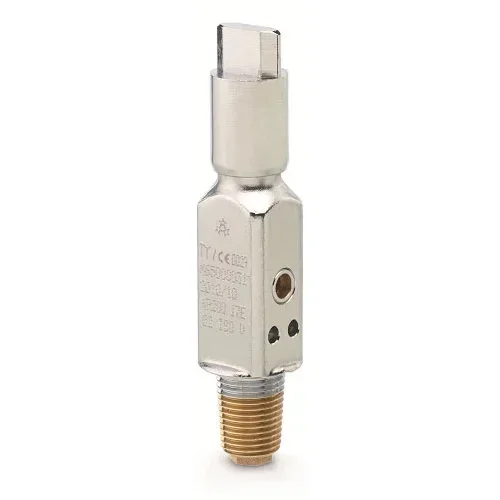

Pin Index cylinder valve with RPV for medical gases - M650 — manufacturer product image

Pin-index cylinder valve for medical gases with active residual pressure function.

Key features
  • Low operating torque
  • MRI compatible
  • Key-operated or handwheel operating system
  • Residual pressure technology
  • Designed and tested according to EN 849, EN ISO 407, EN ISO 15996 and CGA V9

Medical gas valves and equipment

Technical specifications
BrandRotarex
CategoryMedical gas valves and equipment
Cv0.08
Body materialchrome plated / natural brass
Seat materialPA 6.6
Filter materialbrass sintered
O-ring materialEPDM
Key – operatedchrome plated
Working pressure200 bar (2900 psi)
Seat orifice size2.5 mm
Temperature range-25°C to +70°C (-13°F to 158 °F)
Handwheel materialremovable plastic switch blade
Magnetic compatibilityyes
Helium leak rate at pmax10 -3 mbar l/sec

Product information and images are compiled from the manufacturer's own publications; they do not depict a Sedan Mühendislik installation. Technical data is confirmed before ordering.

More images

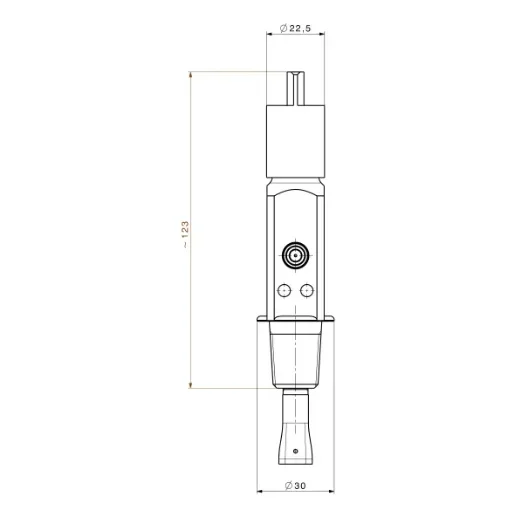

Pin Index cylinder valve with RPV for medical gases - M650 — 1
