RX507L is a small stainless-steel canister with a capacity 50CC to 7L, for sampling and experimentation purposes. Designed for high-purity, metalorganic precursors and dopants. Can be fully customized in terms of choosing capacity, port configuration, and conduction of the required certification.
Key features
316L Stainless Steel
Helium Leak Test according to connection type
Excellent tightness
Electropolished: Std. 0.25 µm (10µin)
Easy port design
Traceability with each serial number (Name plate or Electrical body marking)

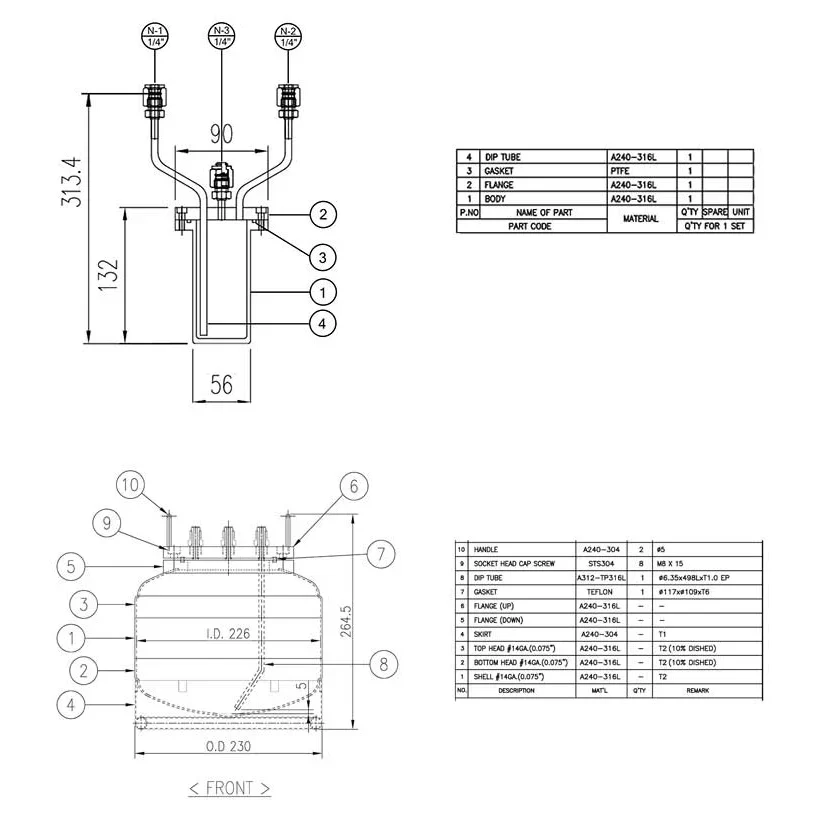

6L Canister: RX507L 6L C 2 D1N1R1 PH / Body & Flange : SS 316L / Port : SS 316L EP metal face seal / Ra : 0.25 µm (10µin) / Handle : SS 304 10T / Flange seal gasket : PTFE (Standard) / Rz : 0.9 µm
Surface finish
Inside: #400 with EP / Outside: #400
Design pressure
1.0MPa
Temperature rating
-20°C to 120°C / -4°F to 248°F
Body thickness (mm)
2T
Max. working pressure
0.7MPa
Digital n2 pressure test
0.3MPa/2hour
Certified max. helium inboard leak rate
<1x10-9 mbar l/s
Product information and images are compiled from the manufacturer's own publications; they do not depict a Sedan Mühendislik installation. Technical data is confirmed before ordering.
