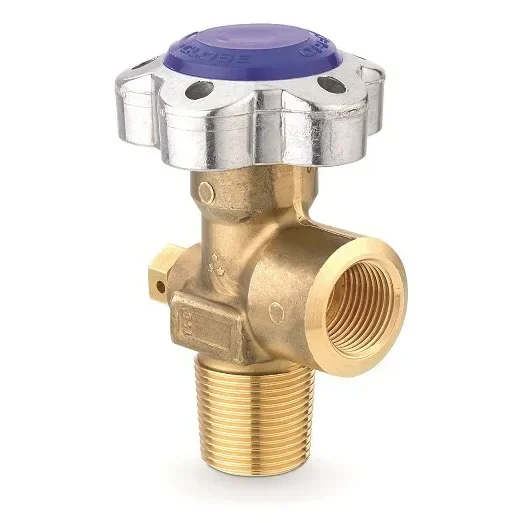

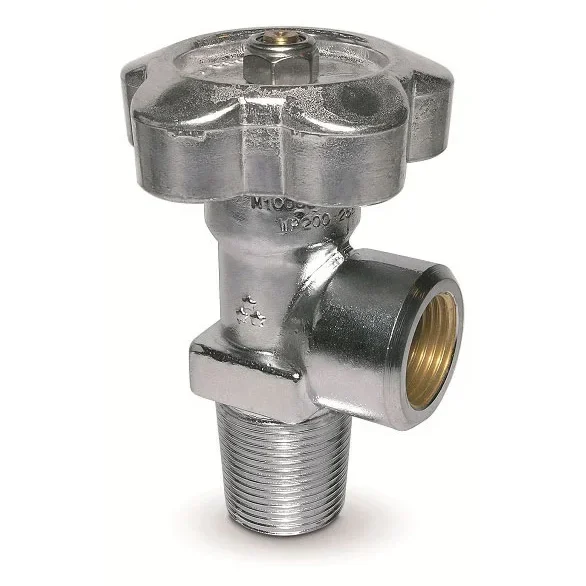

Rotarex standard valves from the series C100/C105/C110/C115 are high pressure O-ring seal type valves suitable for Oxygen, Nitrous Oxide and Mixtures. It is available for 200 bar or 300 bar inlet pressure, with or without safety, in brass or chrome plated, for any inlet and outlet types to fit the application and the national standard required. The C100/C105/C110/C115 valves are also suitable for medical oxygen.
Key features
High pressure brass cylinder valve for oxygen and oxygen mixtures (>20% O2) service
Permanent gas tight seal
π marking according TPED directive
Tested according EN ISO 10297
Adiabatic compression tested to avoid oxygen ignitions
Product information and images are compiled from the manufacturer's own publications; they do not depict a Sedan Mühendislik installation. Technical data is confirmed before ordering.
