Rotarex · Industrial gas valves

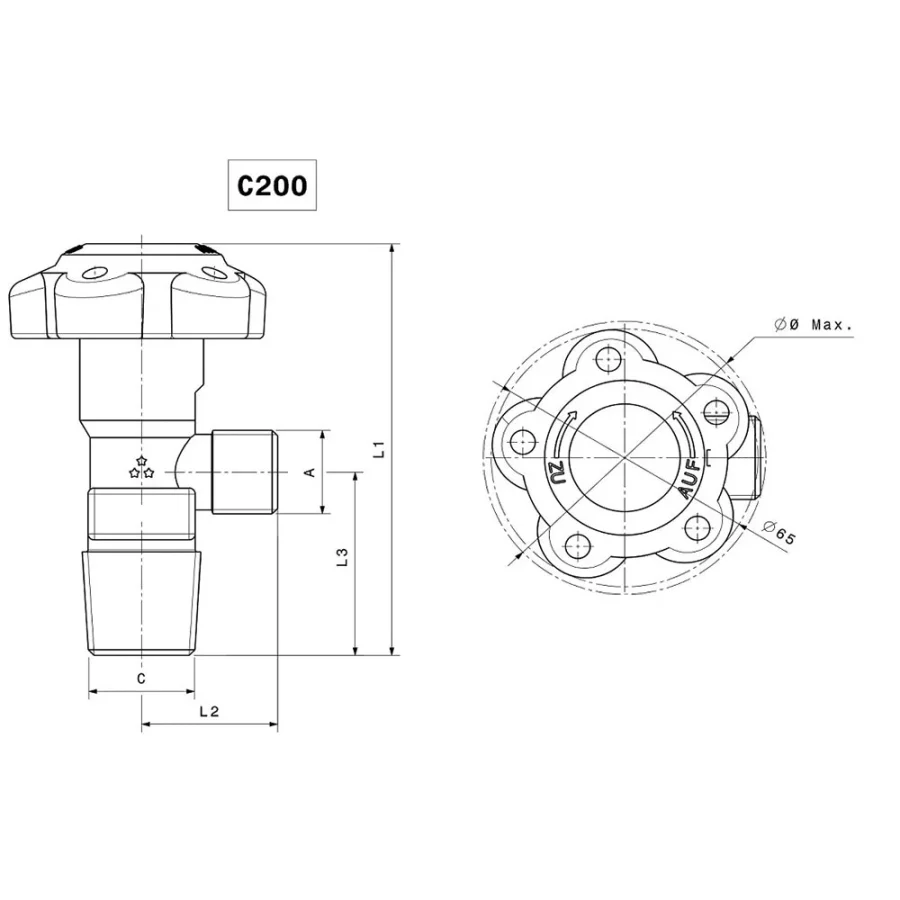

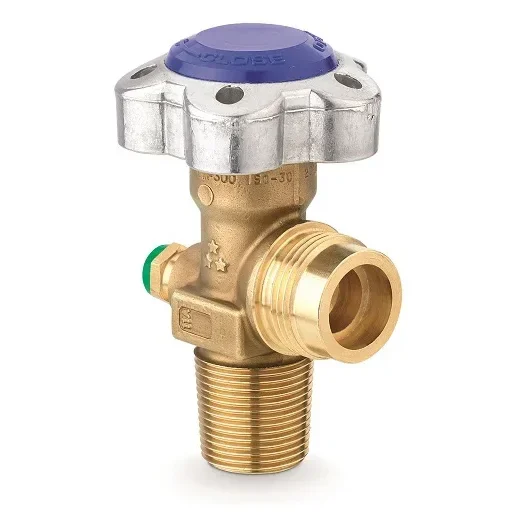

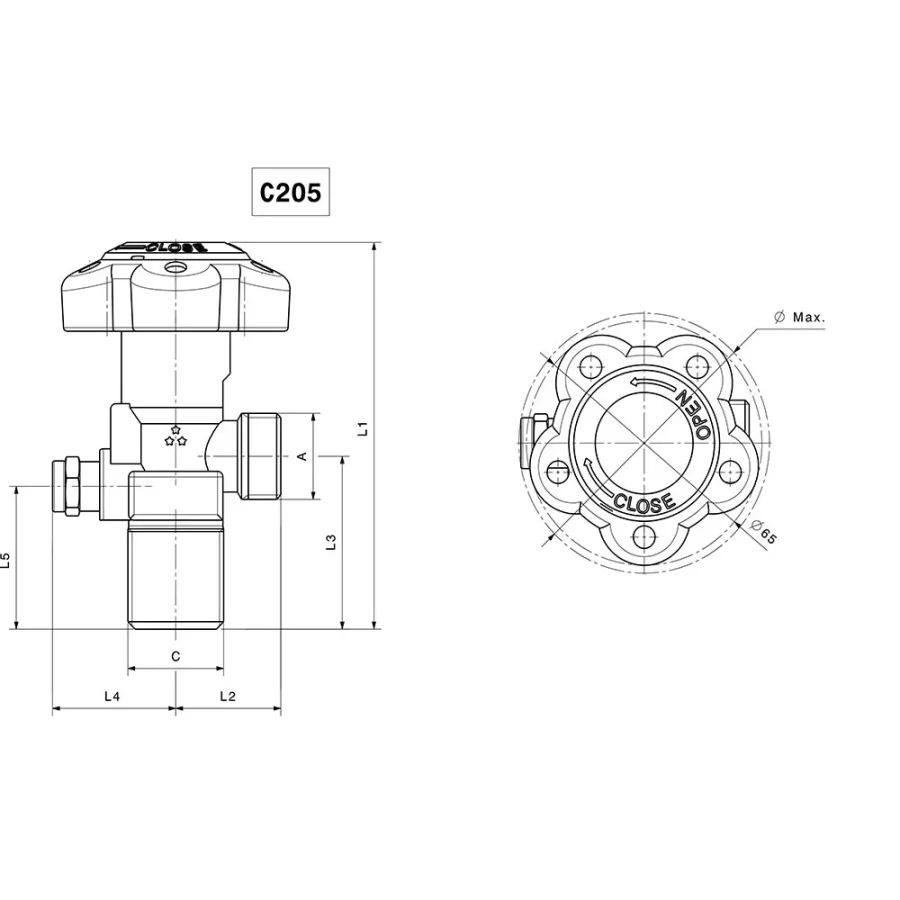

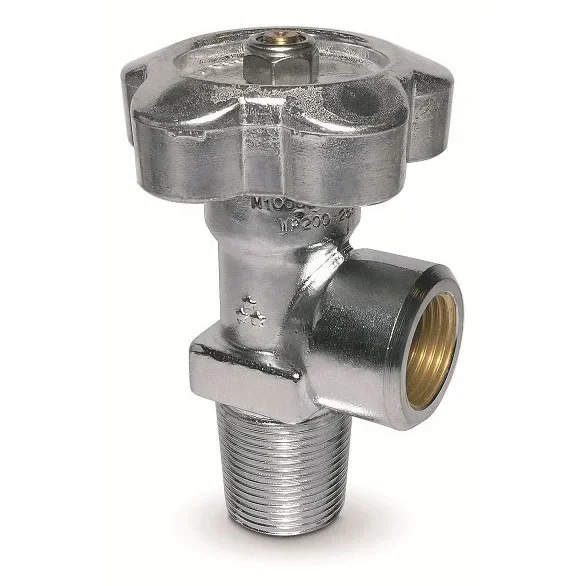

Standard valves - C200/C205/C210/C215
Manufacturer product images · for reference
The C200 series are standard valves for industrial and medical applications for different inert, inert mixtures and flammable gas service.
- High pressure brass cylinder valve for Inert, Inert mixtures and flammable gas service
- Permanent gas tight seal
- π marking according TPED directive
- Tested according EN ISO 10297 and CGA V9 standards
- Compatible with medical oxygen
Technical specifications
| Brand | Rotarex |
|---|---|
| Category | Industrial gas valves |
| Cv | 0,3 |
| Safety | C200 / C210: No / C205 / C215: Yes |
| Gas type | Inert |
| Material | Handwheel: aluminium / Seat: PA 6.6 / O-rings: EPDM / NBR / Body: brass |
| Seat orifice size | 4 Mm |
| Temperature range | -20 to +65 °c |
| Working pressure pmax. | 300 bar |
| Helium leak rate at pmax. | Internal 10 -3 mbarl/sec / External 10 -3 mbarl/sec |
| In- and outlet connections | In accordance with all country standards |
Product information and images are compiled from the manufacturer's own publications; they do not depict a Sedan Mühendislik installation. Technical data is confirmed before ordering.
