Rotarex · Medical gas valves and equipment

Tied diaphragm valve for NO gas mixtures - D413

Request a quote
+90 553 213 45 39

Manufacturer product images · for reference

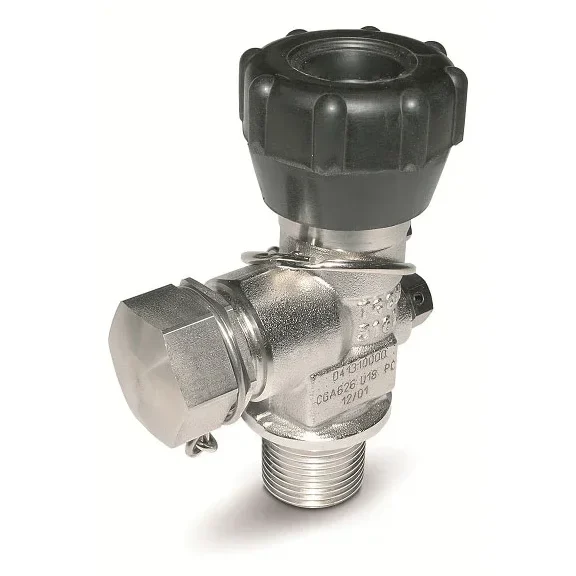

Tied diaphragm valve for NO gas mixtures - D413 — manufacturer product image

High flow cylinder valve with RPV - tied diaphragm seal type for NO mixtures

Key features
  • Reduced dead spaces and gas wetted volumes allow easy purging process
  • Freedom of internal threads and springs ensures minumum particulate generation
  • Backed up welded diagrams provide a permanent and durable gas-tight seal
  • O-rings in the gland and on the spindle guarantee a secondary sealing
  • Threaded vent hole

Medical gas valves and equipment

Technical specifications
BrandRotarex
CategoryMedical gas valves and equipment
Body material316L Stainless steel
Working pressure200 bar/3000 psig
Residual pressure1 to 5 bar
Rpv seat materialViton®
Seat orifice size4 mm
Temperature range-40 to +70 °c
Flow coefficient cv0,35
Gas wetted materialsPCTFE
Helium leak rate at pmax10-8 mbar l/sec

Product information and images are compiled from the manufacturer's own publications; they do not depict a Sedan Mühendislik installation. Technical data is confirmed before ordering.

More images

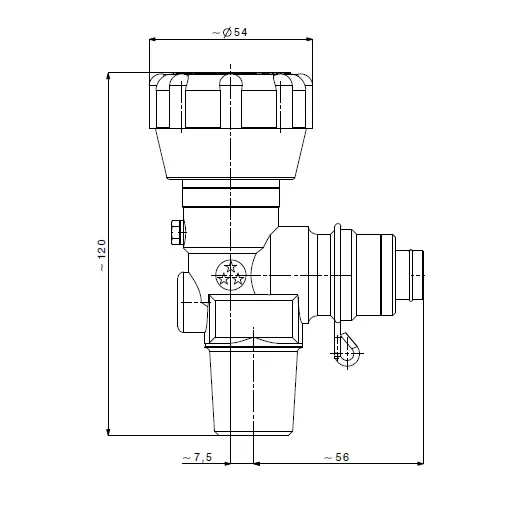

Tied diaphragm valve for NO gas mixtures - D413 — 1
