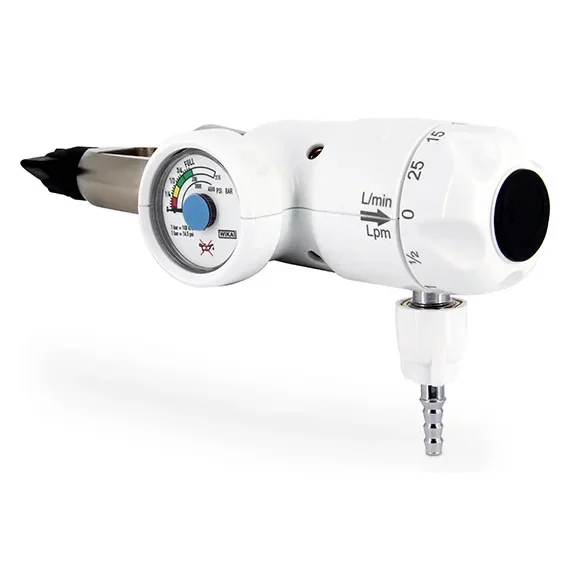

Yoke version pressure regulator for medical gases - M730 Alpinox
Manufacturer product images · for reference
The pin index yoke version of the Alpinox medical gas pressure regulator is designed for safe and reliable pressure regulation from small medical gas cylinders equipped with a Pin Index connection. Thanks to the Pin Index Safety System (PISS), the regulator can only be connected to the correct gas cylinder, preventing misconnections and ensuring safe operation in medical environments. Compact and easy to install, it provides dependable pressure regulation for oxygen therapy and medical equipment supplied by portable cylinders.
- Strong compatibility with oxygen and other medical gases
- Pin Index Safety System (PISS) ensuring correct gas connection
- Clear visual indication of the delivered flow rate
- Designed for small medical cylinders with Pin Index valve
- Durable construction suitable for intensive medical use with a 10 years lifetime and no preventive maintenance
- Suitable for ambulances, emergency care and hospital use
- MRI compatible
Technical specifications
| Brand | Rotarex |
|---|---|
| Category | Medical gas valves and equipment |
| Gas | Oxygen, Air, N2O/02, Other medical gases |
| Filter | Sintered bronze 20 μm |
| Life time | 10 years |
| Pill test | Resistant to ASTM G175 |
| Ce marking | CE0123 |
| Flow range | From 0-6 Lpm to 0-25 Lpm |
| Body material | Brass |
| Seat material | Nylon |
| O-ring material | EPDM |
| Regulatory status | 10524-1 |
| Max inlet pressure | 200 bar / 2000 psig |
Product information and images are compiled from the manufacturer's own publications; they do not depict a Sedan Mühendislik installation. Technical data is confirmed before ordering.
